AirSpade 4000 Utility Series Kit - 150 cfm with 4 Ft Barrel & 3 Ft Extension
Part Number:
Features

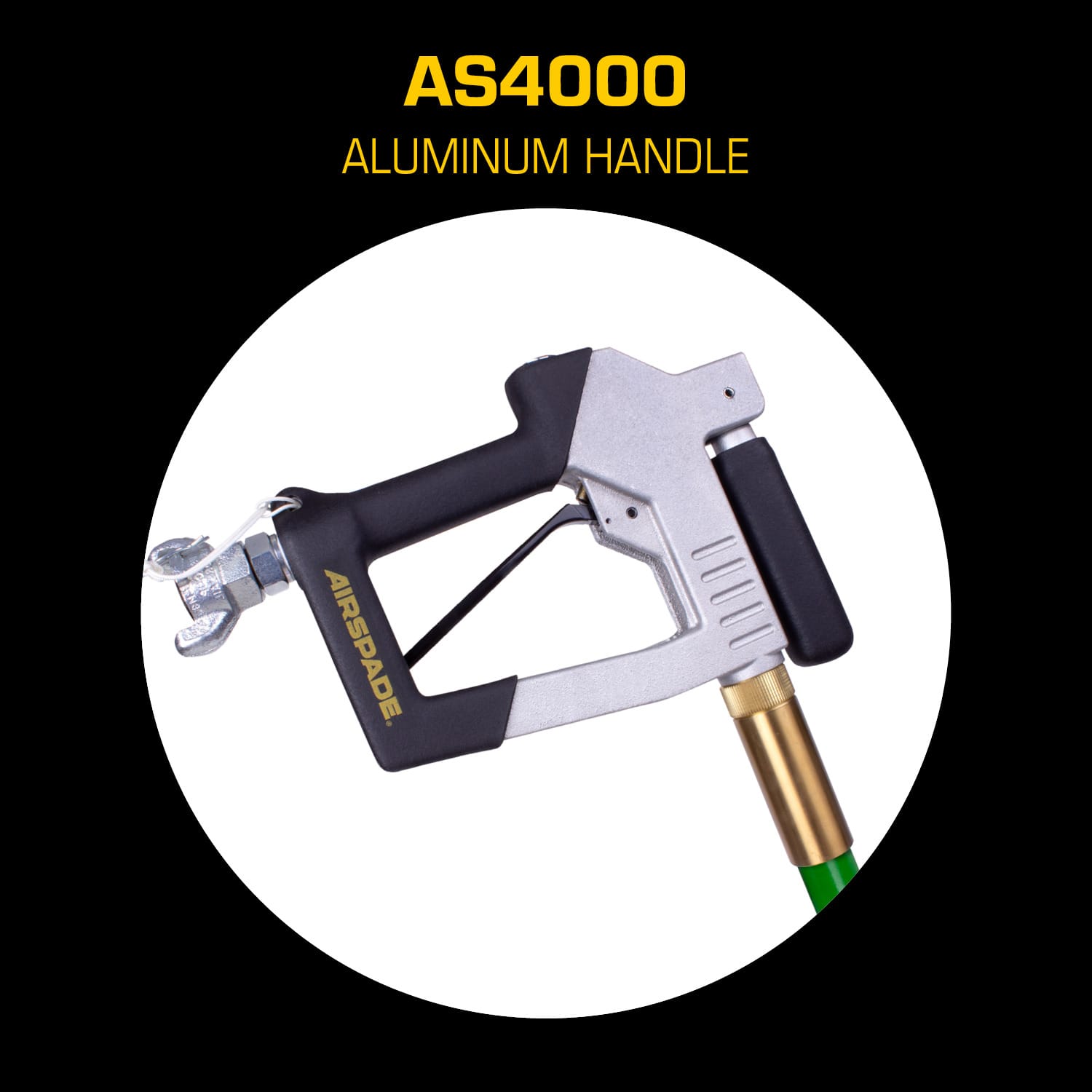

- Utility AirSpade handle assembly with Chicago-style, swivel connector
- Insulated, 4 Ft. fiberglass barrel rated up to 300kV with dirt shield
- 3 Ft. insulated extension and non-sparking Brass coupler
- 45 degree non-sparking Brass angled adapter
- 150 cfm non-sparking Nickel Aluminum Bronze nozzle; 105 and 225 cfm available
- 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
- Heavy-duty, plastic storage case with lock

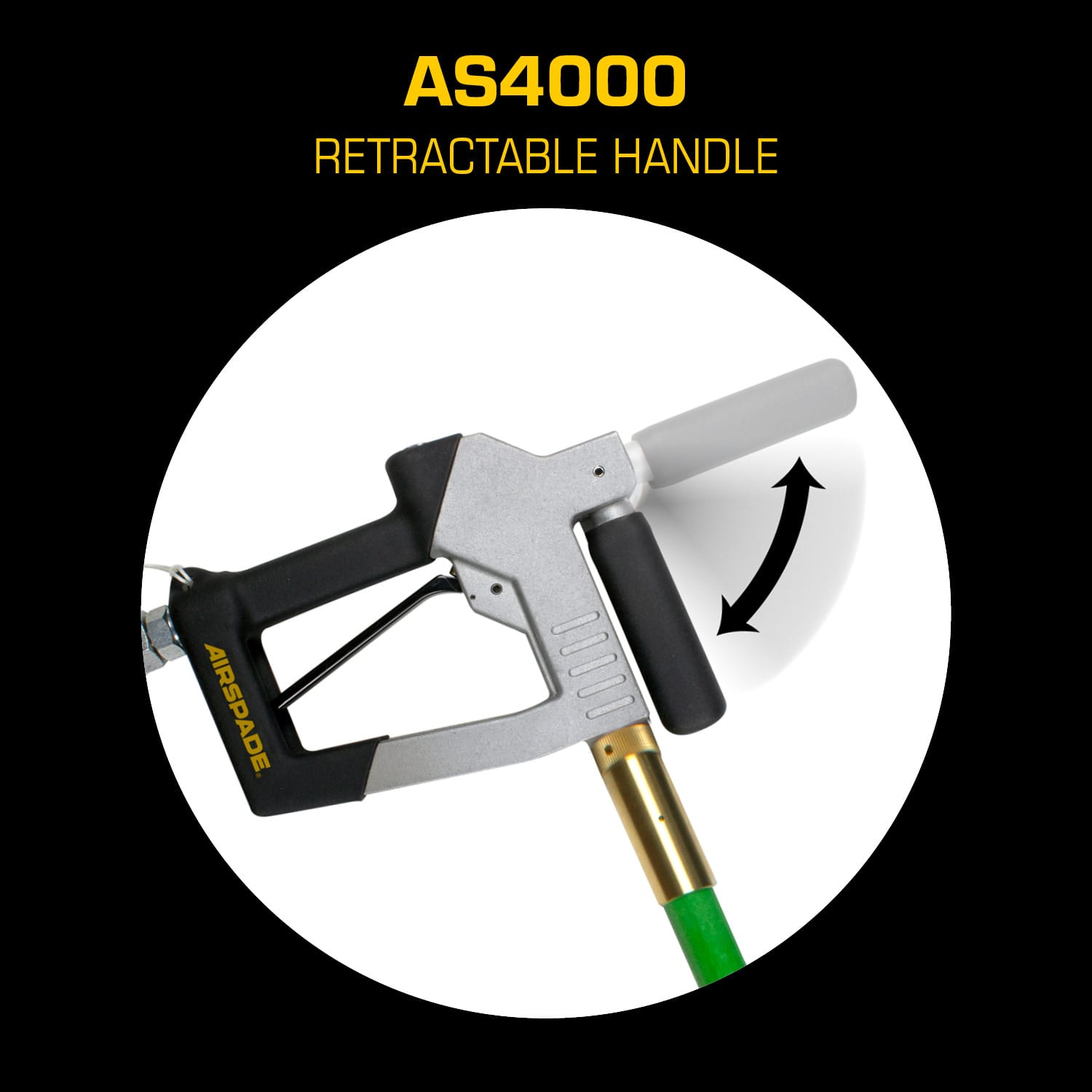

- Detachable, auxiliary handle

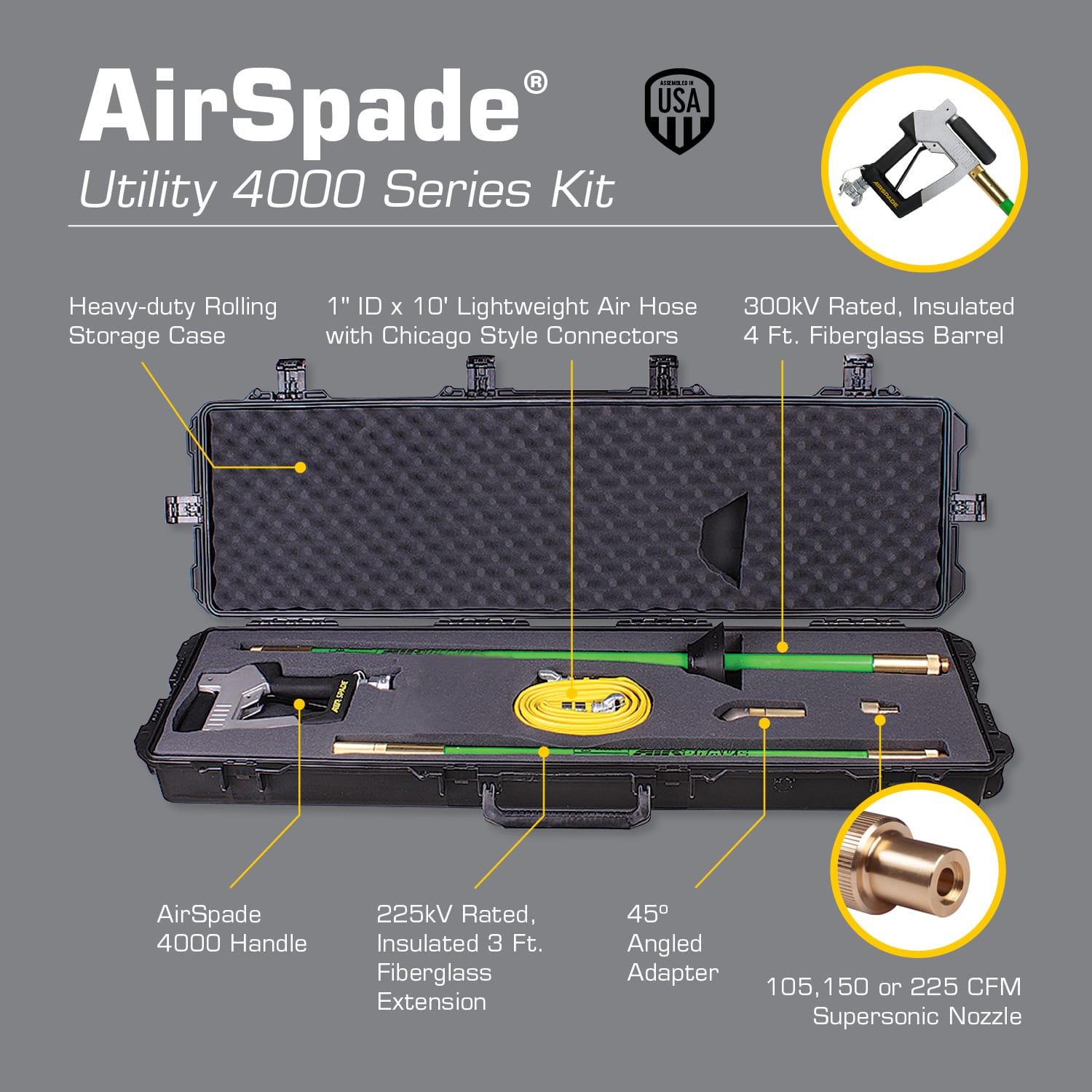

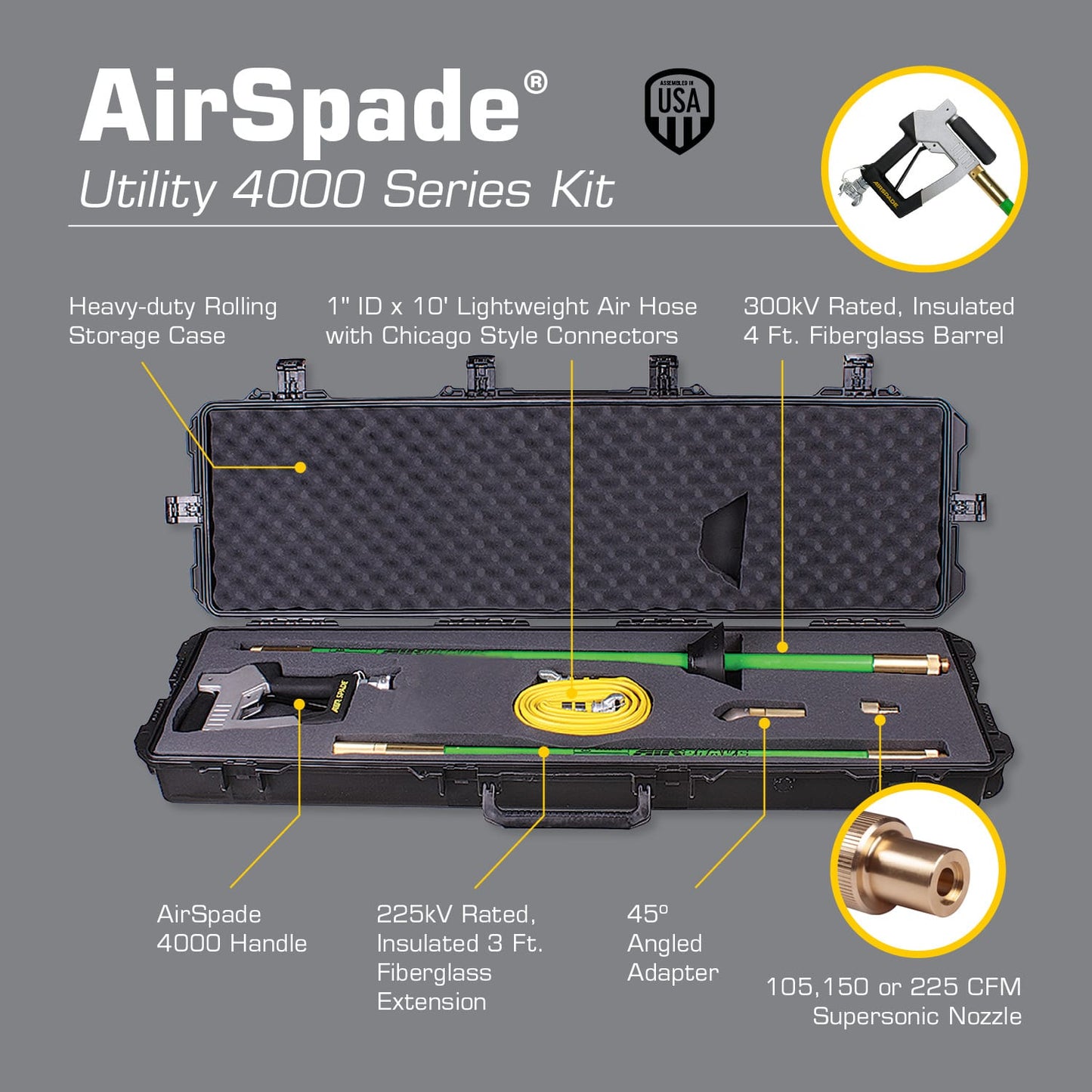

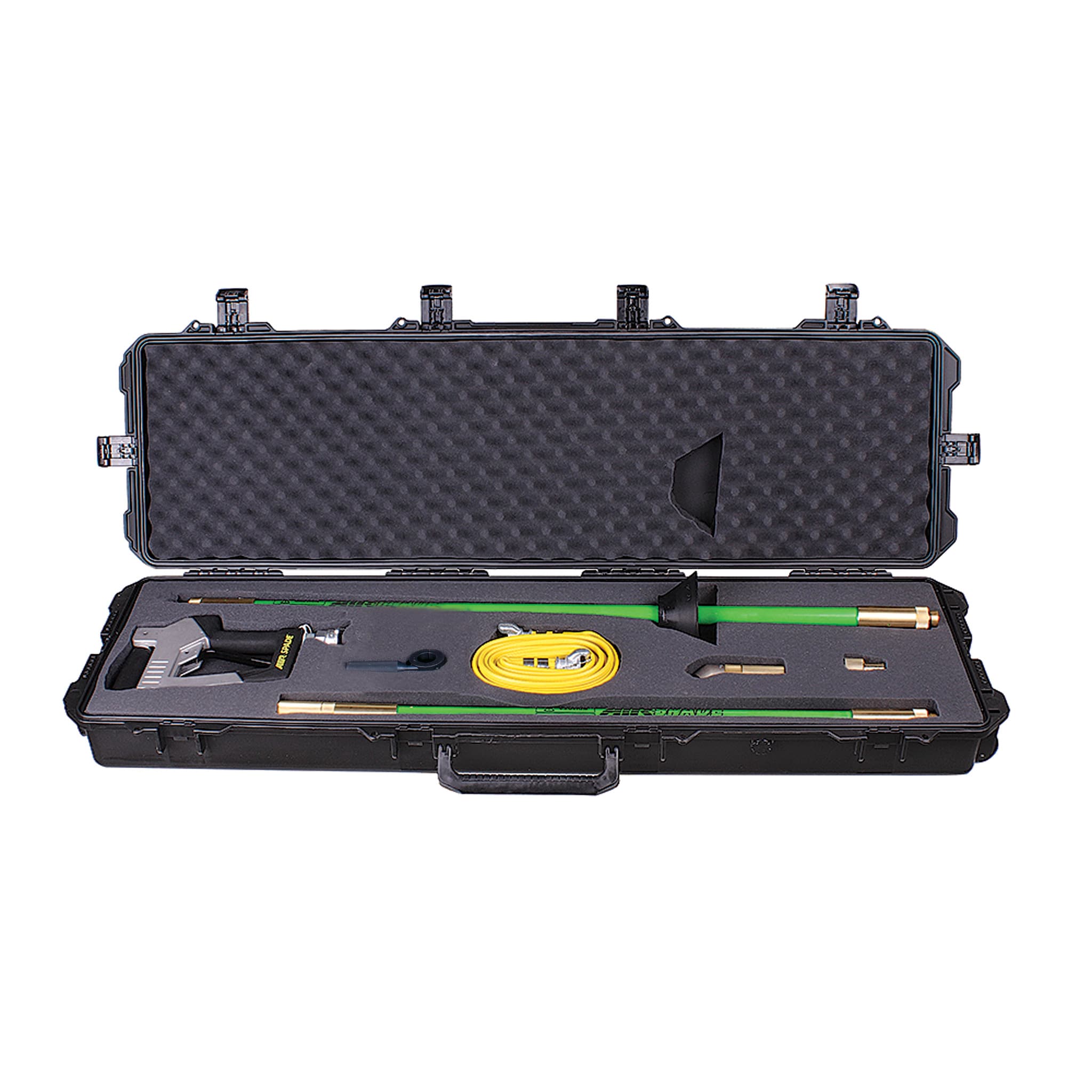

Includes
- (1) Utility AirSpade 4000 Handle
- (1) 4 Ft. insulated, fiberglass barrel with dirt shield
- (1) 3 Ft. insulated extension
- (1) 150 cfm non-sparking Nickel Aluminum Bronze supersonic nozzle
- (1) Plastic locking storage case
- (1) 45 degree non-sparking Brass angled adapter
- (1) 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
- (1) Detachable, auxiliary handle
- (1) Operations Manual
Specifications
| Part Number | Inlet | Min. Compressor Required (hp) | Soil Excavation Rate (cubic ft/min) | Noise Level (dB) | Flow (cfm) |
Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| Part Number ASU4150KT | Inlet 3/4 | Min. Compressor Required (hp) 33 | Soil Excavation Rate (cubic ft/min) 1.2 - 1.8 | Noise Level (dB) 122 | Flow (cfm) 150 |
Dimensions (L" x W" x H") 97.5 X 13.5 X 5.5 |
Weight (lbs) 17.7 |
Literature
Replacement Parts
- Handle Assembly
- Utility Supersonic Nozzle
- Utility Barrel Assembly with Dirt Shield
- Adjustable Dirt Shield Assembly
- Utility Extension with Brass Coupler
- Utility Barrel Extension Brass Coupler
- Utility 45 Degree Angled Brass Adaptor
- Auxiliary Handle
- Handle Repair Kit
- Handle Valve Seals
- Lightweight Air Hose Assembly with Couplings
- Storage Case with Wheels
Lead Time
Lead Time: 5 Days
