AirSpade 5000 Arbor Series - 225 cfm with 4 Ft Barrel

Part Number:

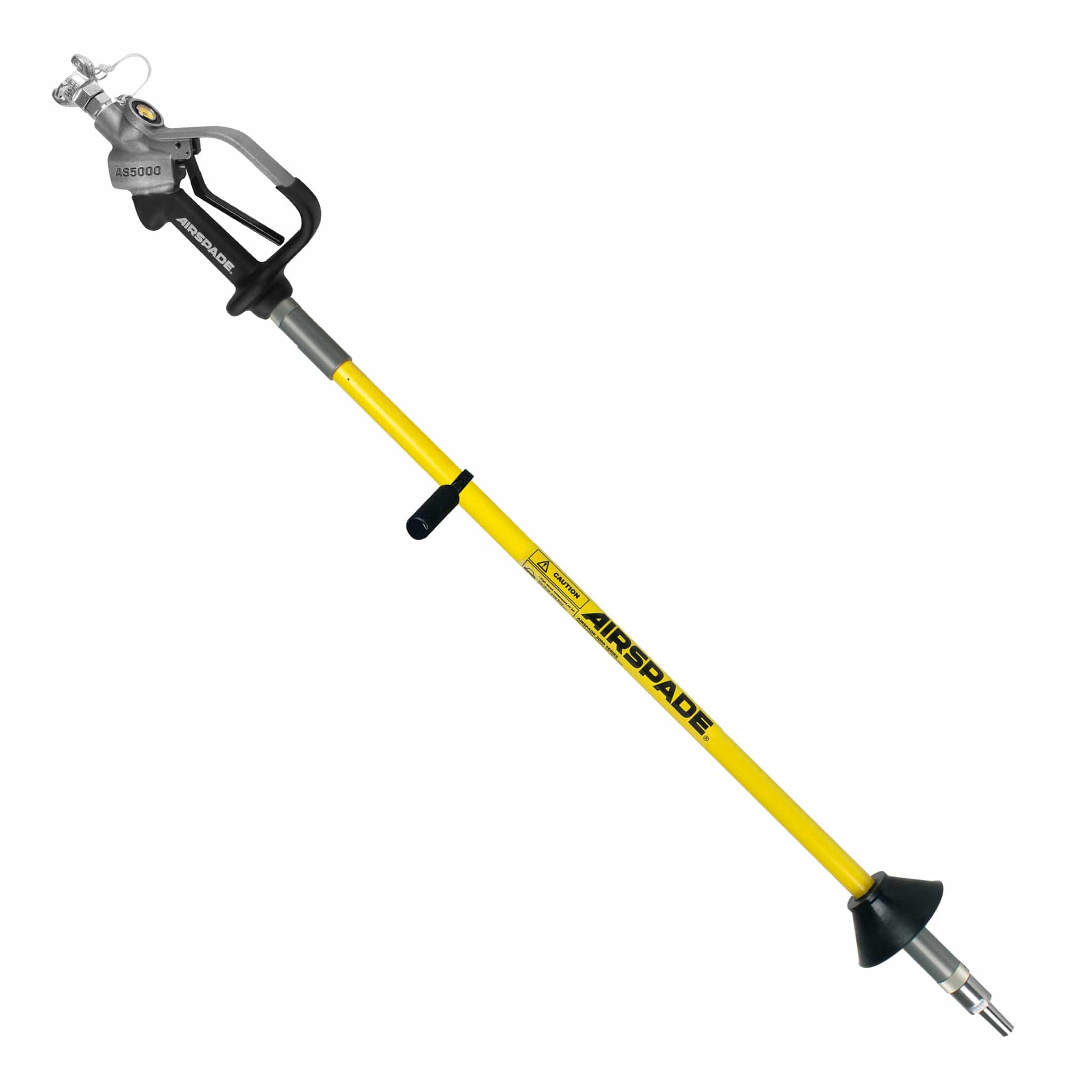

AirSpade 5000 Arbor Series - 225 cfm with 4 Ft Barrel (ASA54225)
ASA54225

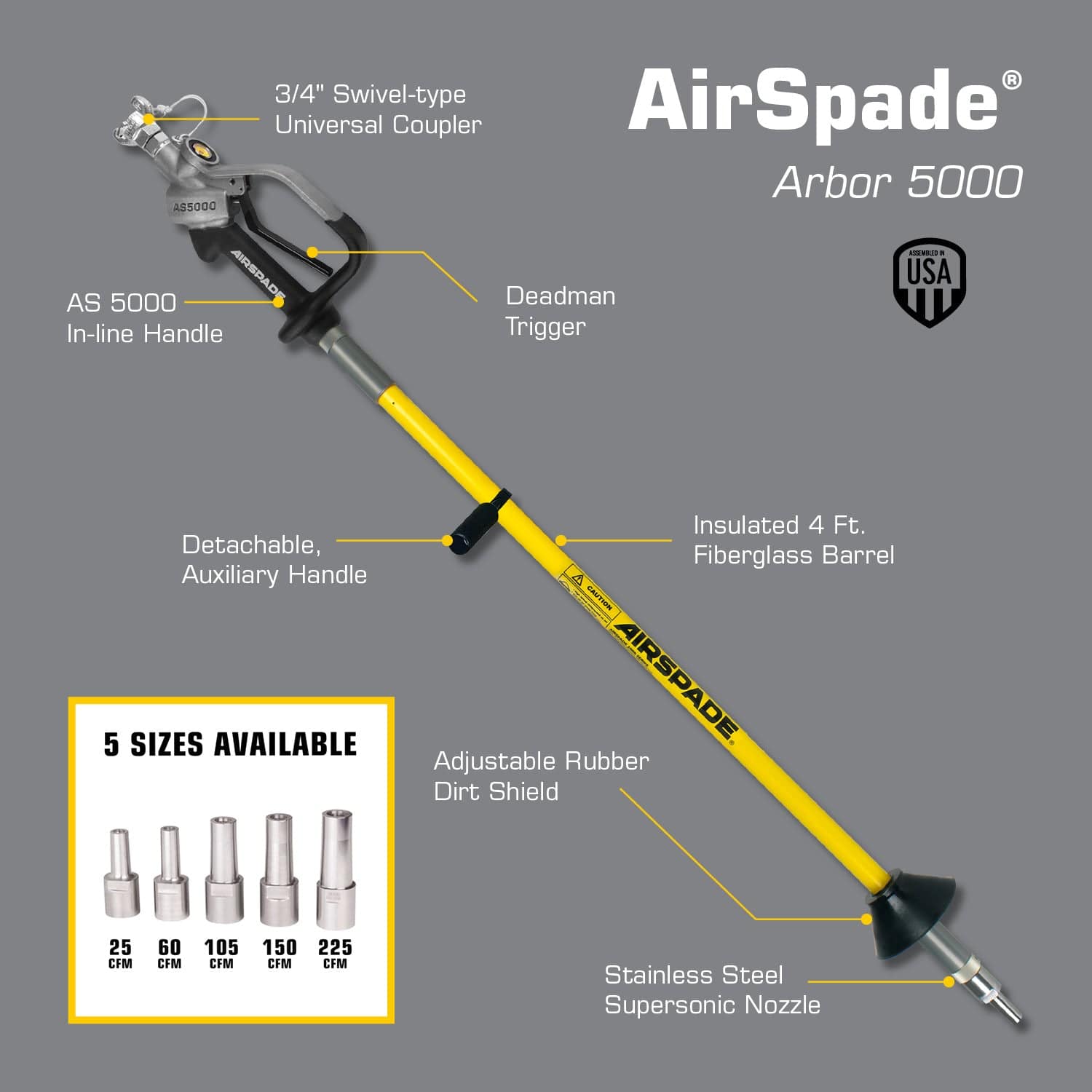

AirSpade 5000 Arbor Spec
ASA54225
AirSpade 5000 In-Line Style Handle
ASA54225
AirSpade Arbor Stainless Steel Supersonic Nozzle 225 cfm
ASA54225
AirSpade Durable Sliding Dirt Shield
ASA54225
AirSpade Arbor Industries - Landscaping, Tree Care, Park Maintenance, Agriculture
ASA54225
AirSpade Arbor Procedures - Soil Cultivation, Root Collar Excavation, Radial Trenching, Vertical Mulching
ASA54225
AirSpade 5000 Arbor Tool in Use
ASA54225
AirSpade 5000 Arbor Tool in Use
ASA54225
AirSpade 5000 Arbor Tool in Use
ASA54225
AirSpade Assembled in the USA Badge
ASA54225
AirSpade 5000 Arbor Series - 225 cfm with 4 Ft Barrel (ASA54225)
AirSpade 5000 Arbor Spec
AirSpade 5000 In-Line Style Handle
AirSpade Arbor Stainless Steel Supersonic Nozzle 225 cfm
AirSpade Durable Sliding Dirt Shield
AirSpade Arbor Industries - Landscaping, Tree Care, Park Maintenance, Agriculture
AirSpade Arbor Procedures - Soil Cultivation, Root Collar Excavation, Radial Trenching, Vertical Mulching
AirSpade 5000 Arbor Tool in Use
AirSpade 5000 Arbor Tool in Use
AirSpade 5000 Arbor Tool in Use
AirSpade Assembled in the USA Badge
Regular price $1,719.00
Regular price Sale price $1,719.00
Sale Sold out

Safely uncover sensitive tree roots and other underground objects with the AirSpade 5000 Arbor Series -- the latest innovation in the AirSpade product line. Featuring an in-line style handle, AirSpade 5000 Arbor is designed for air excavation applications where gripping the tool in a vertical position is preferred.

AirSpade 5000 Arbor harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade Supersonic Nozzle. Fabricated from extra-hardened stainless steel, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.

Rugged, lightweight aluminum handle features full-size grip opening to accommodate gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance.

Features screw-on, lightweight, fiberglass barrel. Adjustable dirt shield deflects soil and debris. Includes swivel type, 3/4" Universal Coupler.

For AS 5000 replacement handle, click here.

View full details
Features
  • Adjustable, rubber dirt shield
  • Insulated, 4 Ft. fiberglass barrel
  • 3/4'' swivel type, Universal Coupler
  • AS 5000 Handle with 3/4'' NPT inlet
  • 225 cfm stainless steel Supersonic Nozzle
  • Detachable, auxiliary handle
  • AS 5000 Handle with 3/4'' swivel type, Universal Coupler
Includes
  • (1) AS 5000 Handle with 3/4'' swivel type, Universal Coupler
  • (1) 4 Ft. fiberglass insulated barrel with adjustable, rubber dirt shield
  • (1) 225 cfm stainless steel Supersonic Nozzle
  • (1) Detachable, auxiliary handle
  • (1) Operations Manual
Specifications
Part Number Inlet Min. Compressor Required (hp) Soil Excavation Rate (cubic ft/min) Noise Level (dB) Flow (cfm) Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASA54225 Inlet 3/4" Min. Compressor Required (hp) 50 Soil Excavation Rate (cubic ft/min) 1.7 - 2.3 Noise Level (dB) 124 Flow (cfm) 225 Dimensions
(L" x W" x H")
63.5 X 11 X 3.2
Weight (lbs) 9
Lead Time
Lead Time: 7 Days
