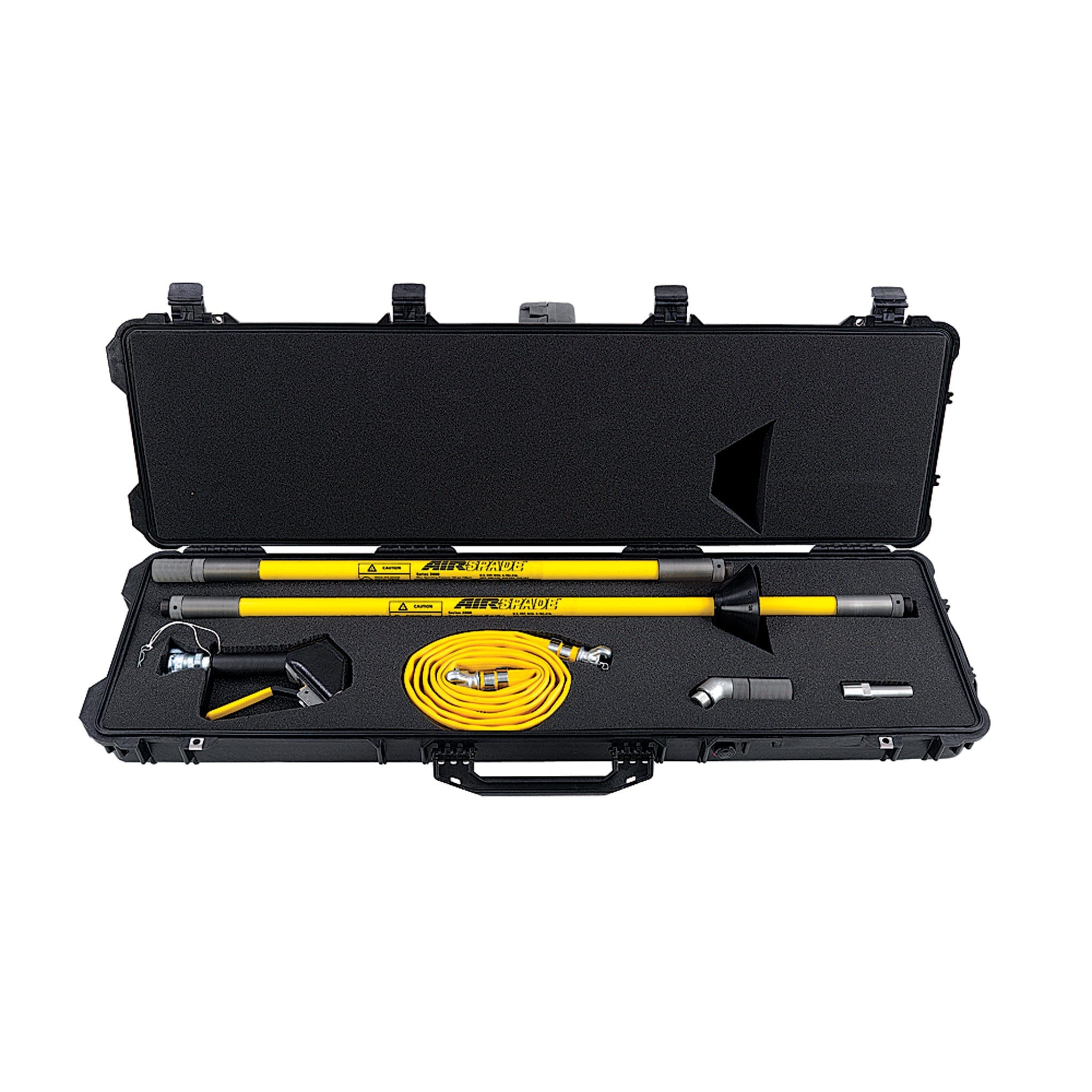

AirSpade 2000 Construction Kit - 225 cfm with 4 Ft Barrel & 3 Ft Extension
Part Number:

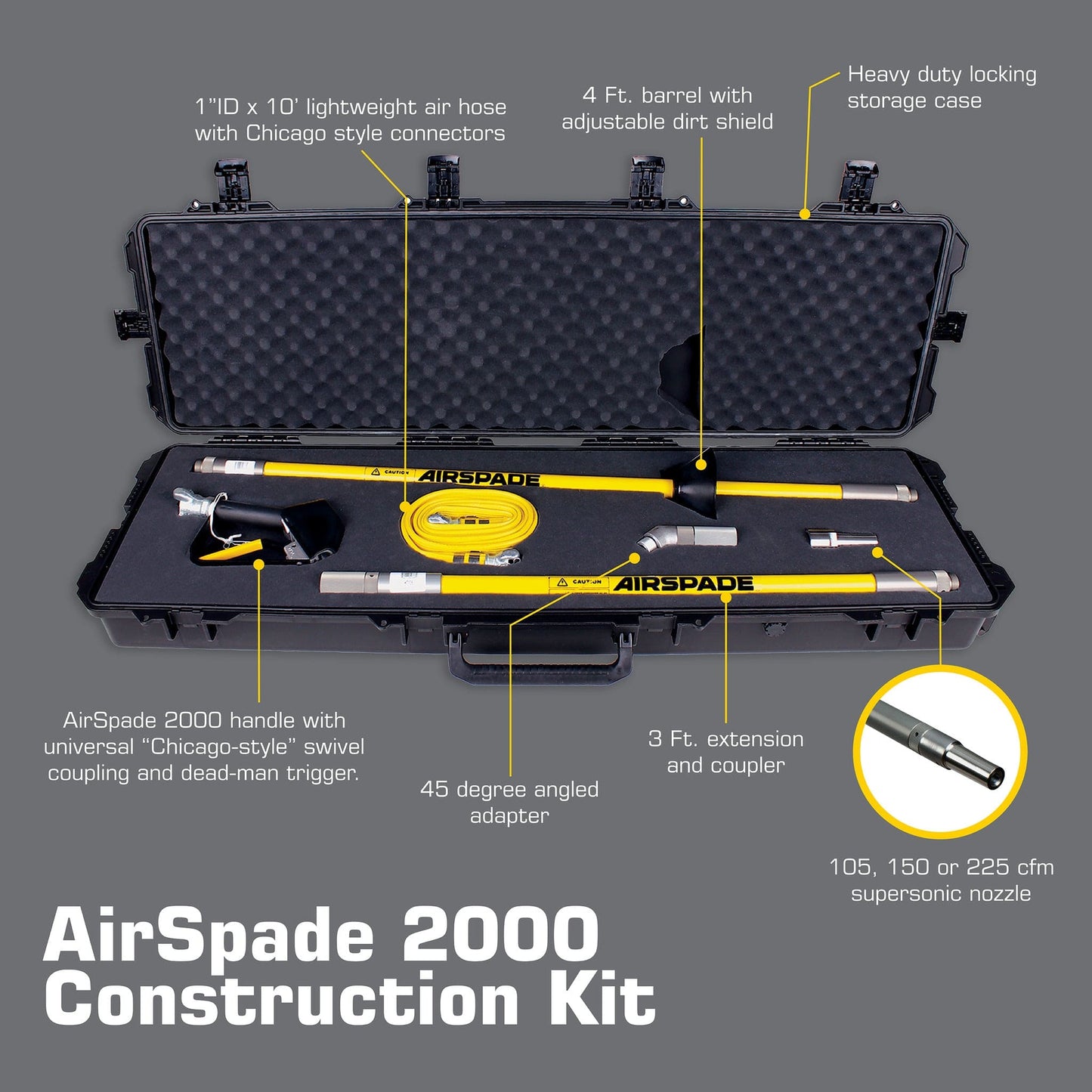

Features
- AirSpade 2000 handle with universal "Chicago-style" swivel coupling
- 4 Ft. barrel with adjustable dirt shield
- 3 Ft. extension and coupler
- 45 degree angled adapter
- 105, 150 or 225 cfm supersonic nozzle
- 1”ID x 10’ lightweight air hose with Chicago style connectors
- Heavy duty locking storage case
- (1) AirSpade 2000 Handle
- (1) 4 Ft. fiberglass barrel with dirt shield
- (1) 3 Ft. extension
- (1) 225 cfm Stainless steel supersonic nozzle
- (1) Plastic locking storage case
- (1) 45 degree angled adapter
- (1) 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
- (1) Operations Manual
Specifications
| Part Number | Inlet | Min. Compressor Required (hp) | Soil Excavation Rate (cubic ft/min) | Noise Level (dB) | Flow (cfm) |
Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| Part Number HT102 | Inlet 3/4" | Min. Compressor Required (hp) 23 | Soil Excavation Rate (cubic ft/min) 1.7 - 2.3 | Noise Level (dB) 124 | Flow (cfm) 105 |
Dimensions (L" x W" x H") 55 X 16 X 6 |
Weight (lbs) 40 |
Literature
Replacement Parts
- Handle Assembly
- Arbor Supersonic Nozzle
- Arbor Barrel Assembly with Dirt Shield

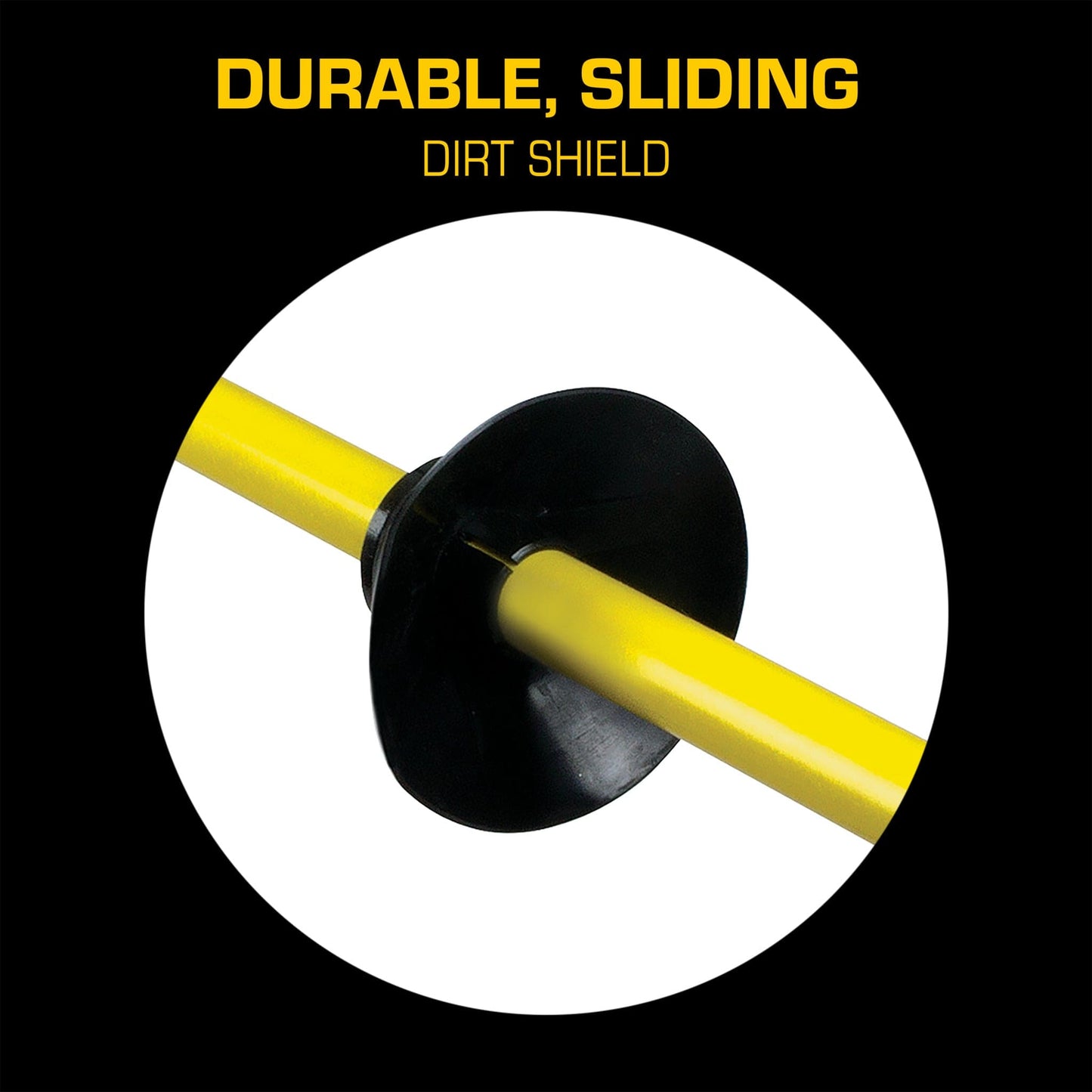

- Adjustable Dirt Shield Assembly
- Arbor Extension with Aluminum Coupler
- Arbor Barrel Extension Aluminum Coupler
- Arbor 45 Degree Angled Aluminum Adaptor
- Handle Repair Kit
- Handle Valve Seals
- Lightweight Air Hose Assembly with Couplings

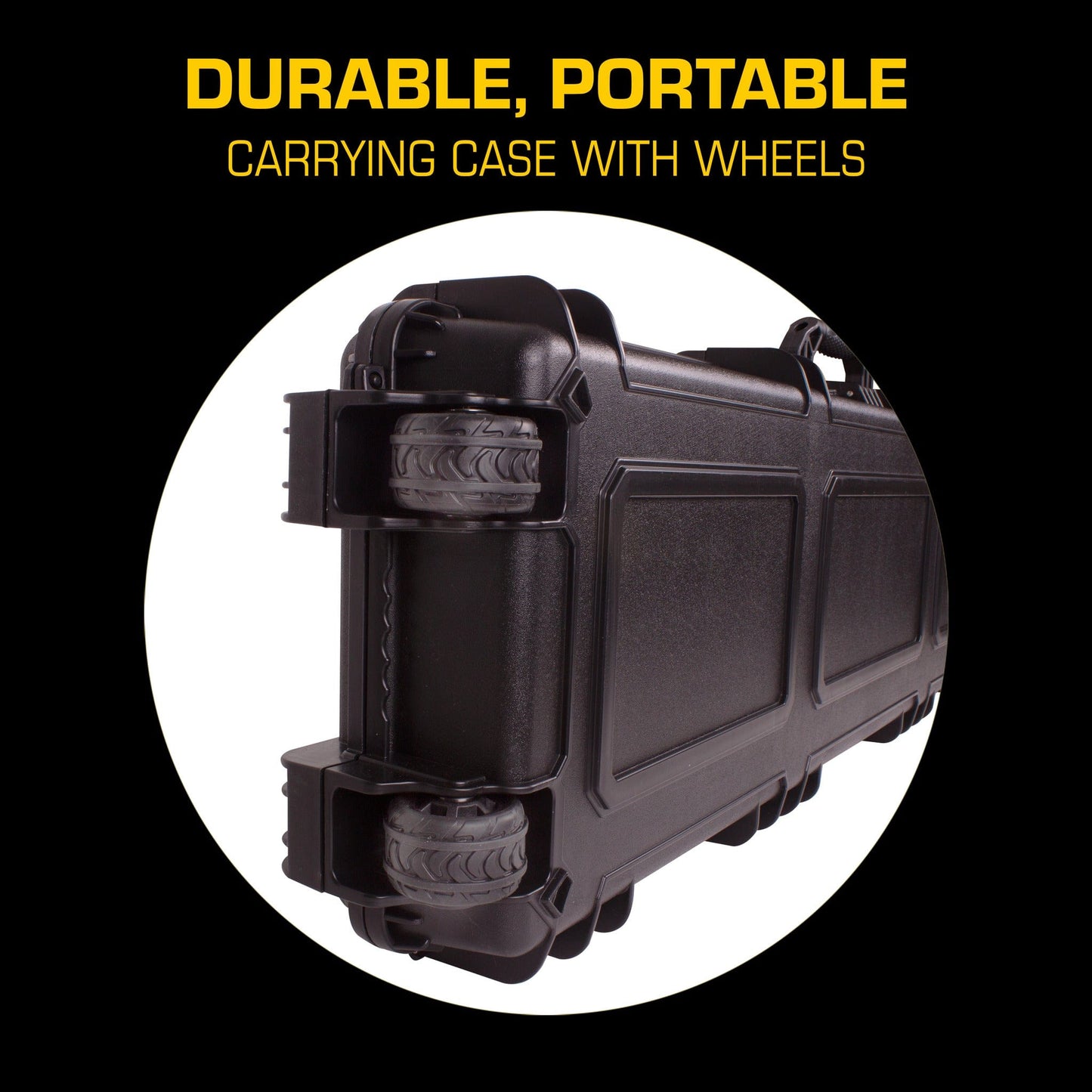

- Storage Case with Wheels
Lead Time
Lead Time: 7 Days
