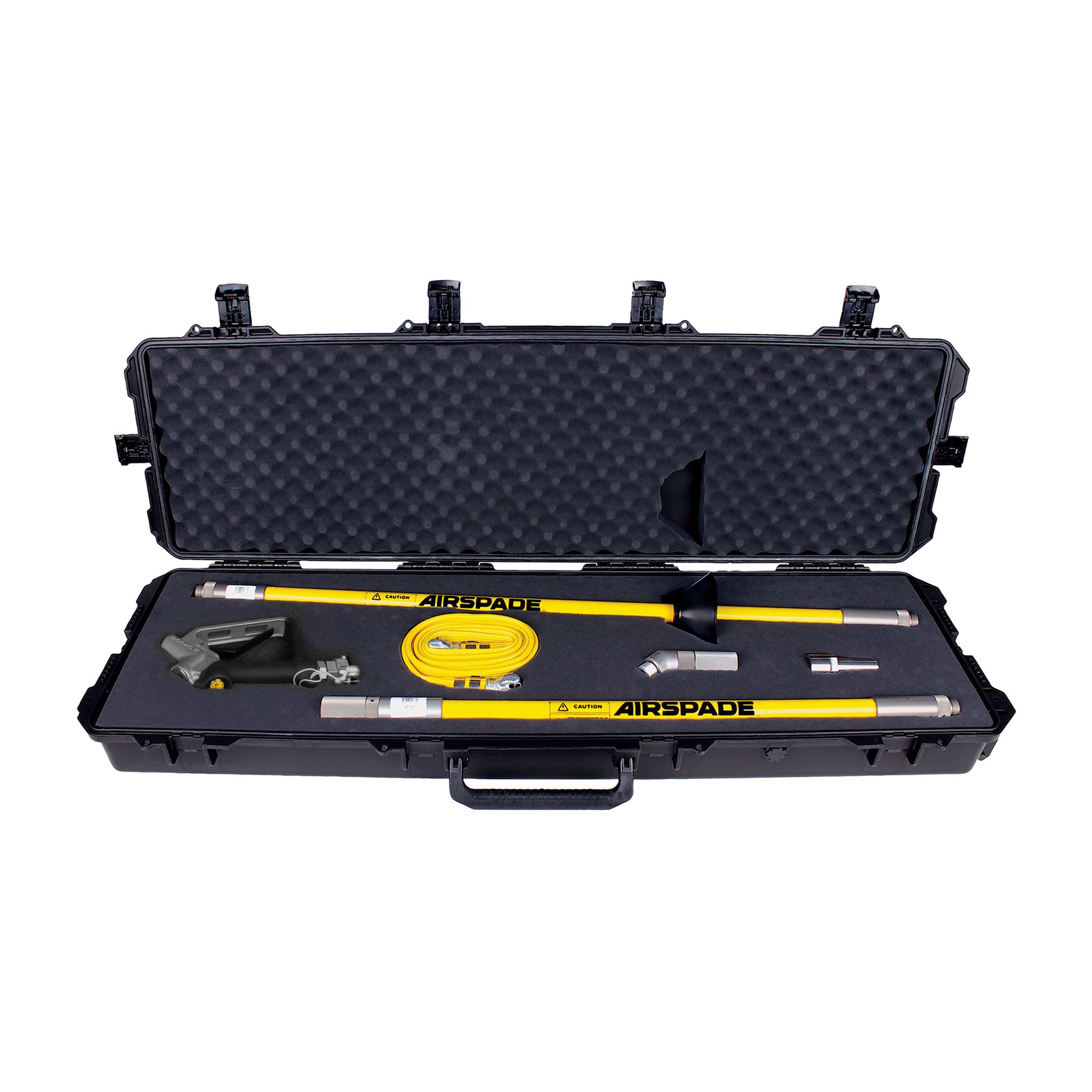

AirSpade 2000 Construction Kit - 225 cfm with 4 Ft Barrel & 3 Ft Extension
Part Number:
Features

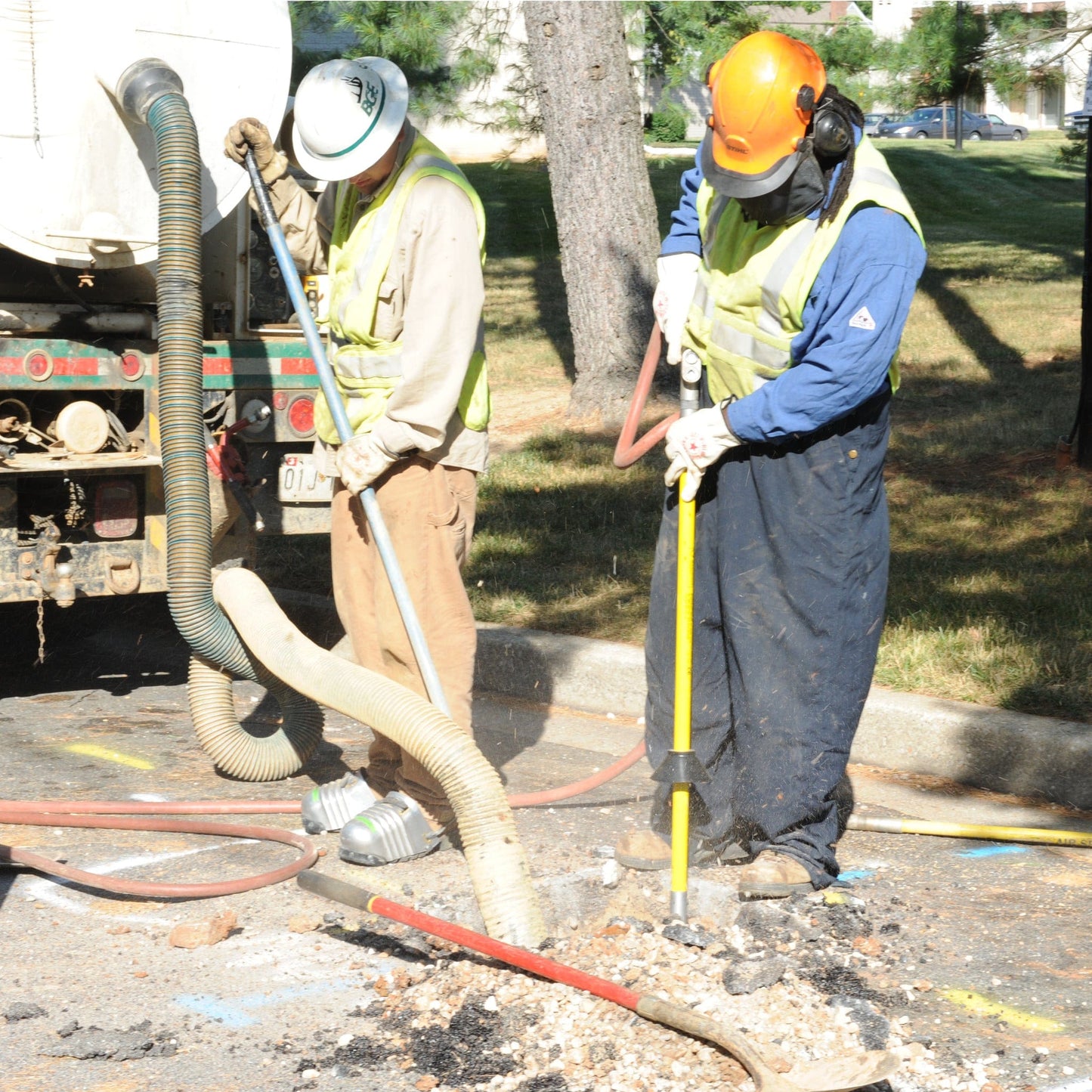

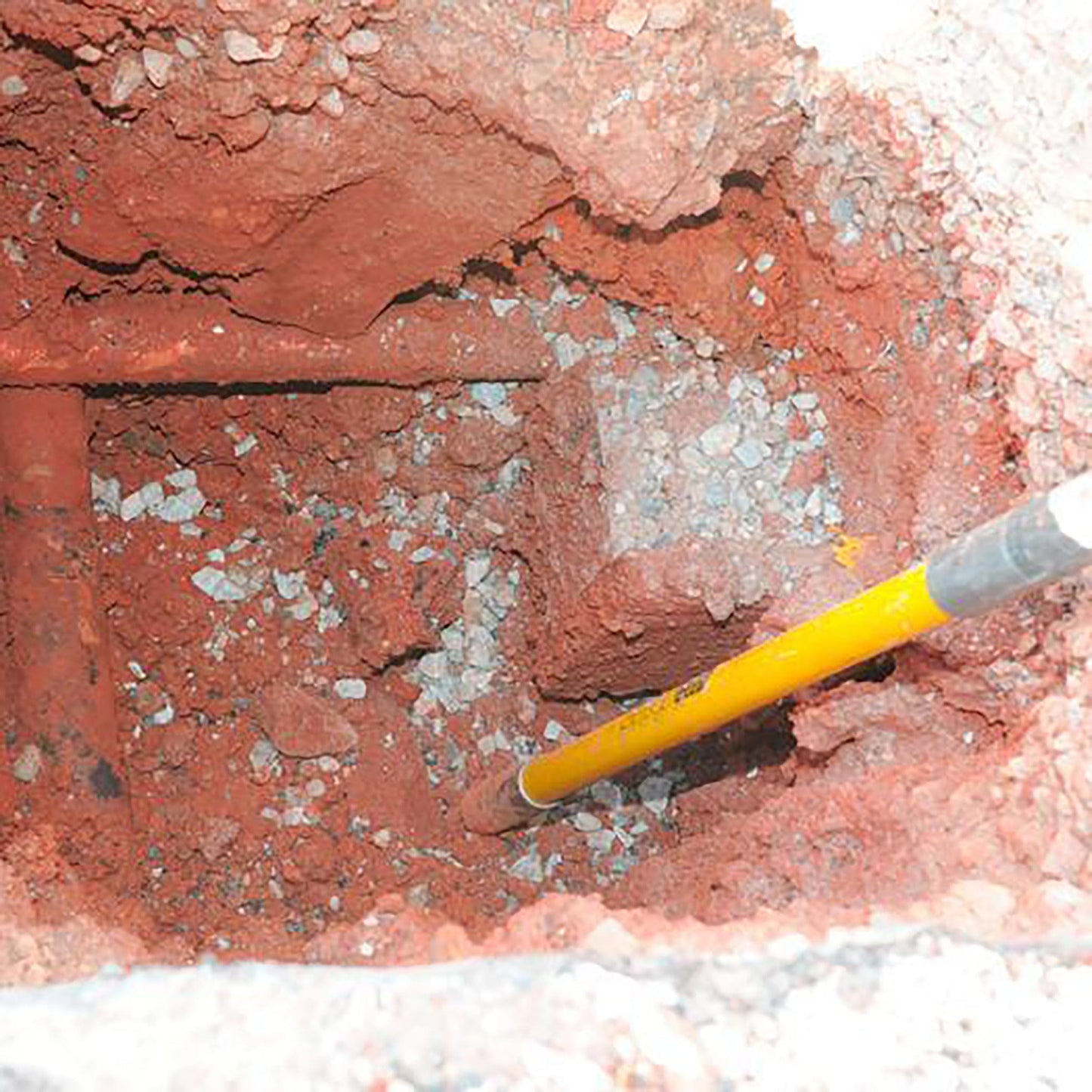

- Dig faster, safer, smarter – Patented nozzle delivers a Mach 2 air jet for precise, non-destructive excavation.
- Built to take a beating – 4-ft fiberglass barrel resists impact and wear for years of reliable use.
- Work longer with less strain – Pistol grip and rubber over-mold reduce fatigue during full-day jobs.
- Stay in the sweet spot – Built-in pressure gauge keeps airflow visible and compressor tuned.
- Safety you can feel – Dead-man trigger stops airflow instantly when released.
- Plug in and go – Standard 3/4" FNPT inlet connects easily to most commercial air compressors.

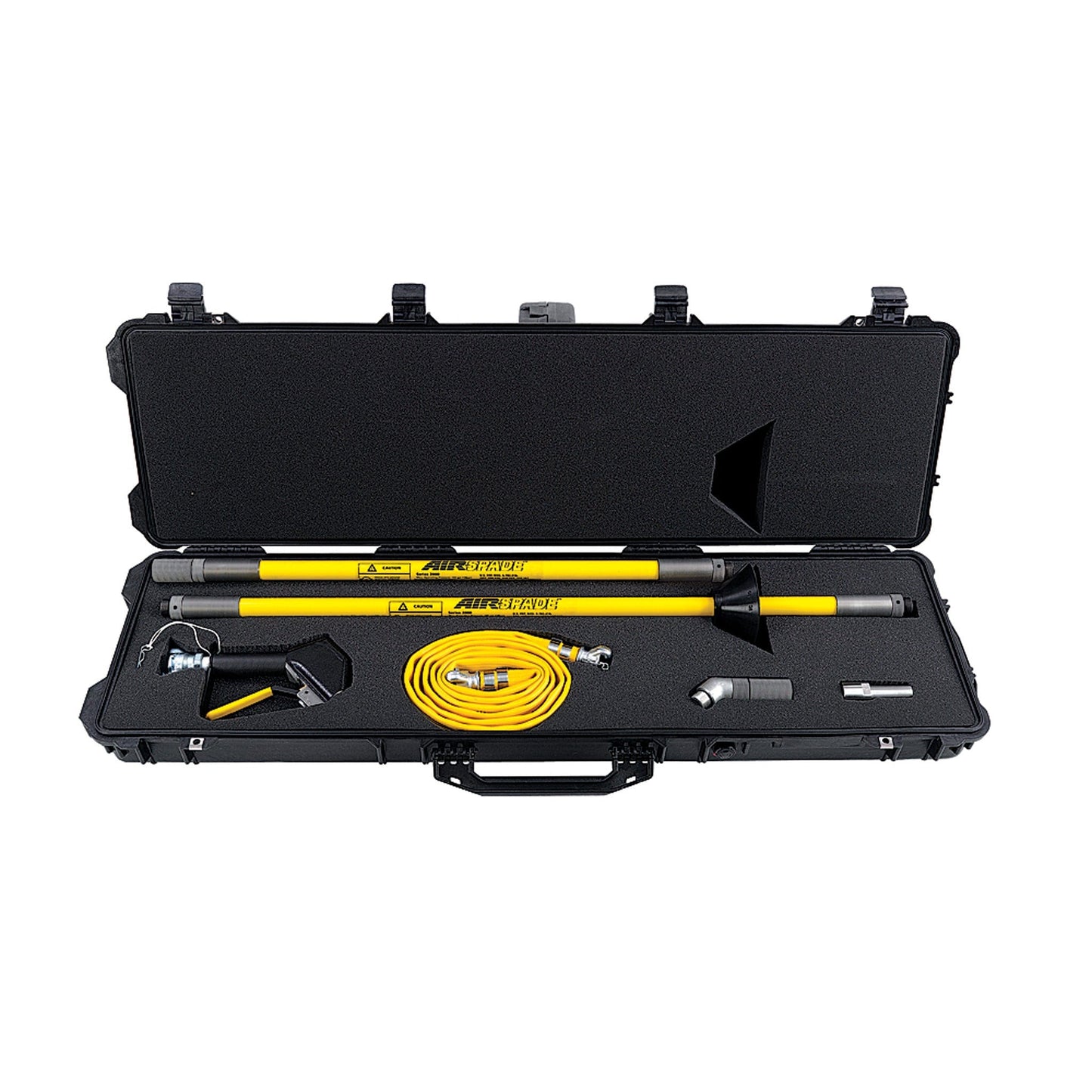

Includes

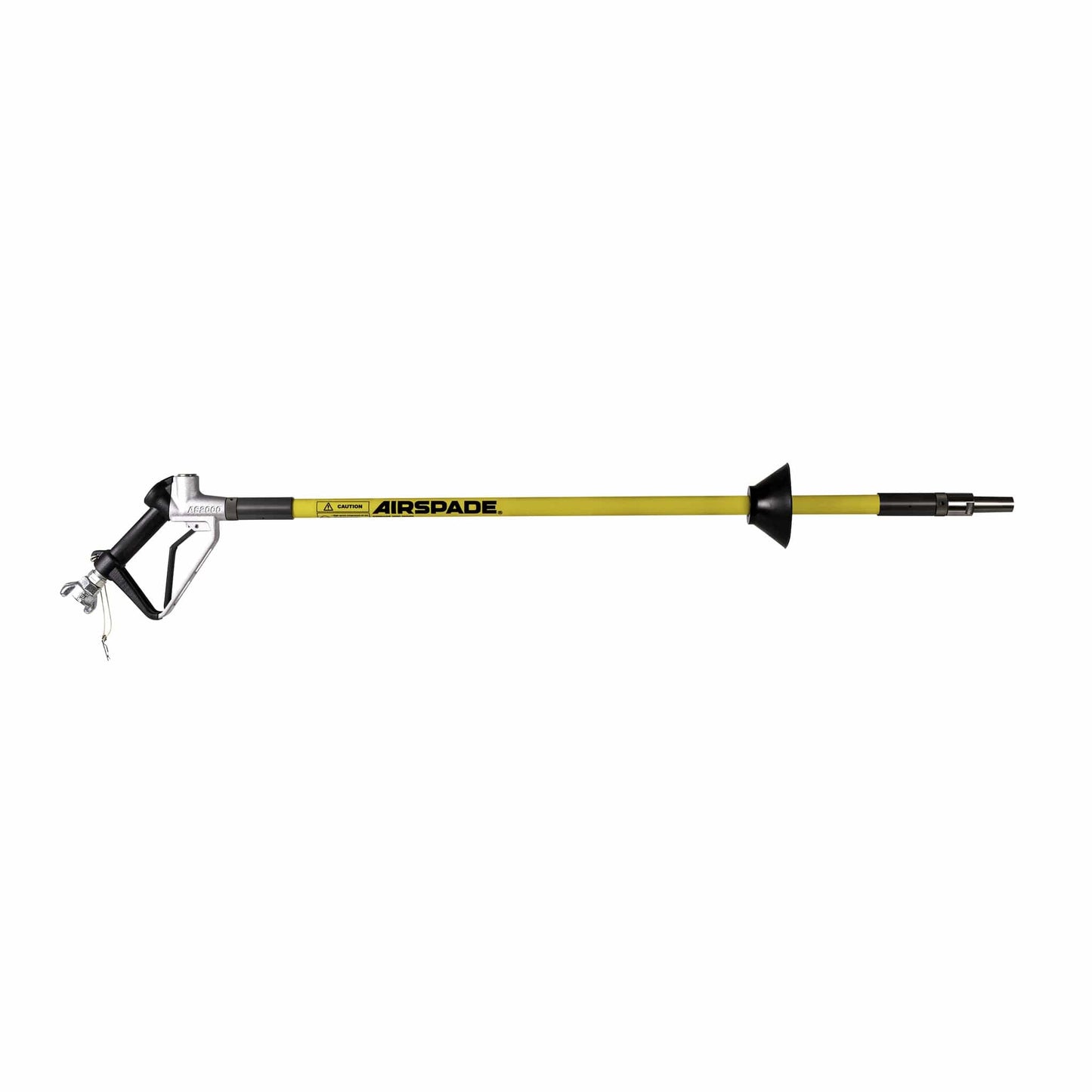

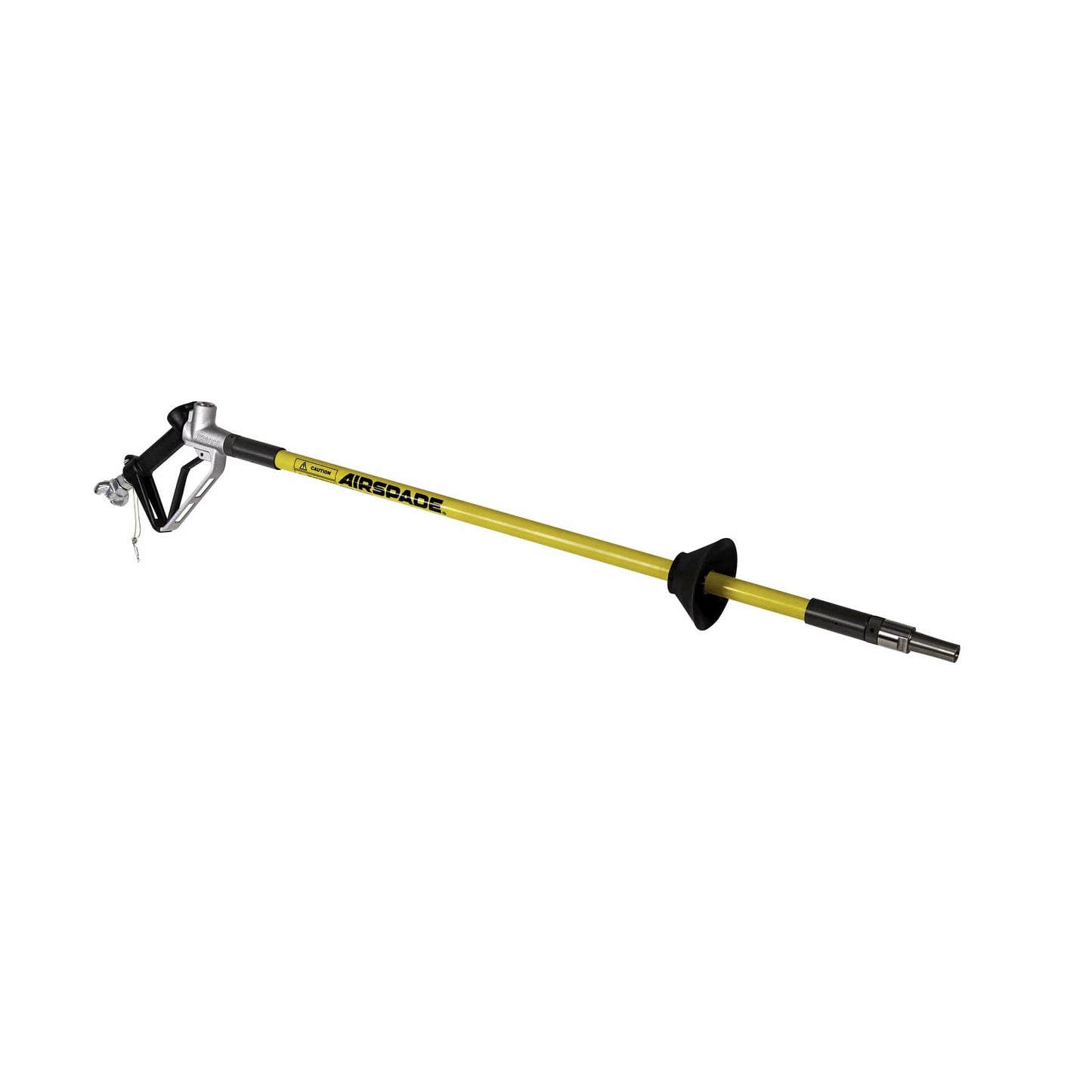

- (1) AirSpade 2000 Handle with pressure gauge + dead-man trigger
- (1) 4 Ft Fiberglass barrel with adjustable debris shield

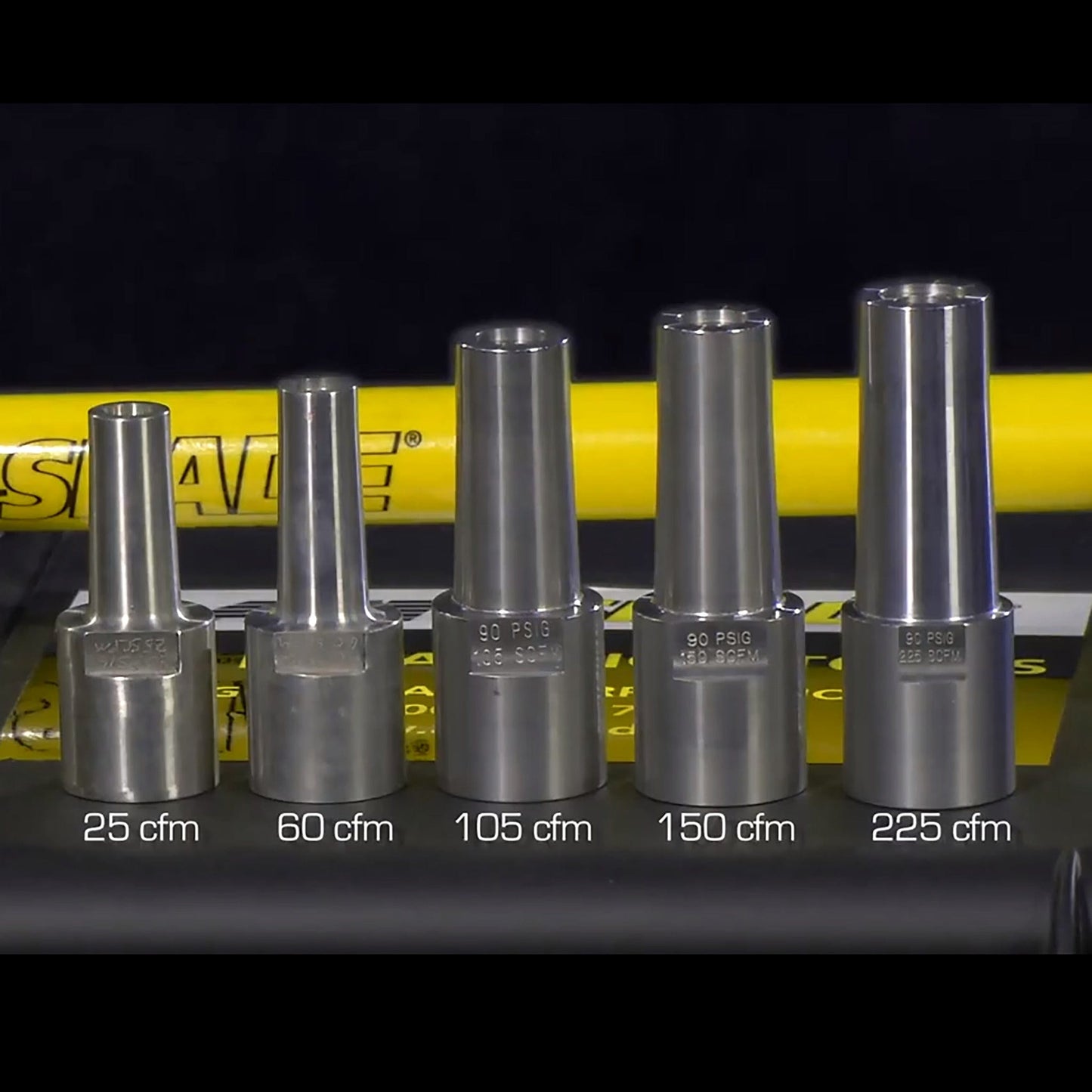

- (1) Stainless steel 225 CFM supersonic nozzle
- (1) 3 Ft Fiberglass extension
- (1) Heavy-duty locking storage case
- (1) 45 degree angled adapter
- (1) 1" ID x 10 Ft lightweight air hose with Chicago-style connectors
- (1) Operator’s Manual
Specifications
| Part Number | Inlet | Min. Compressor Required (hp) | Soil Excavation Rate (cubic ft/min) | Noise Level (dB) | Flow (cfm) |
Dimensions (L" x W" x H") |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| Part Number HT102 | Inlet 3/4" | Min. Compressor Required (hp) 50 | Soil Excavation Rate (cubic ft/min) 1.7 - 2.3 | Noise Level (dB) 124 | Flow (cfm) 225 |
Dimensions (L" x W" x H") 55 X 16 X 6 |
Weight (lbs) 40 |
Literature
Replacement Parts
- Handle Assembly
- Arbor Supersonic Nozzle
- Arbor Barrel Assembly with Dirt Shield
- Adjustable Dirt Shield Assembly
- Arbor Extension with Aluminum Coupler
- Arbor Barrel Extension Aluminum Coupler
- Arbor 45 Degree Angled Aluminum Adaptor
- Handle Repair Kit
- Handle Valve Seals
- Lightweight Air Hose Assembly with Couplings
- Storage Case with Wheels
Lead Time
Lead Time: 7 Days
