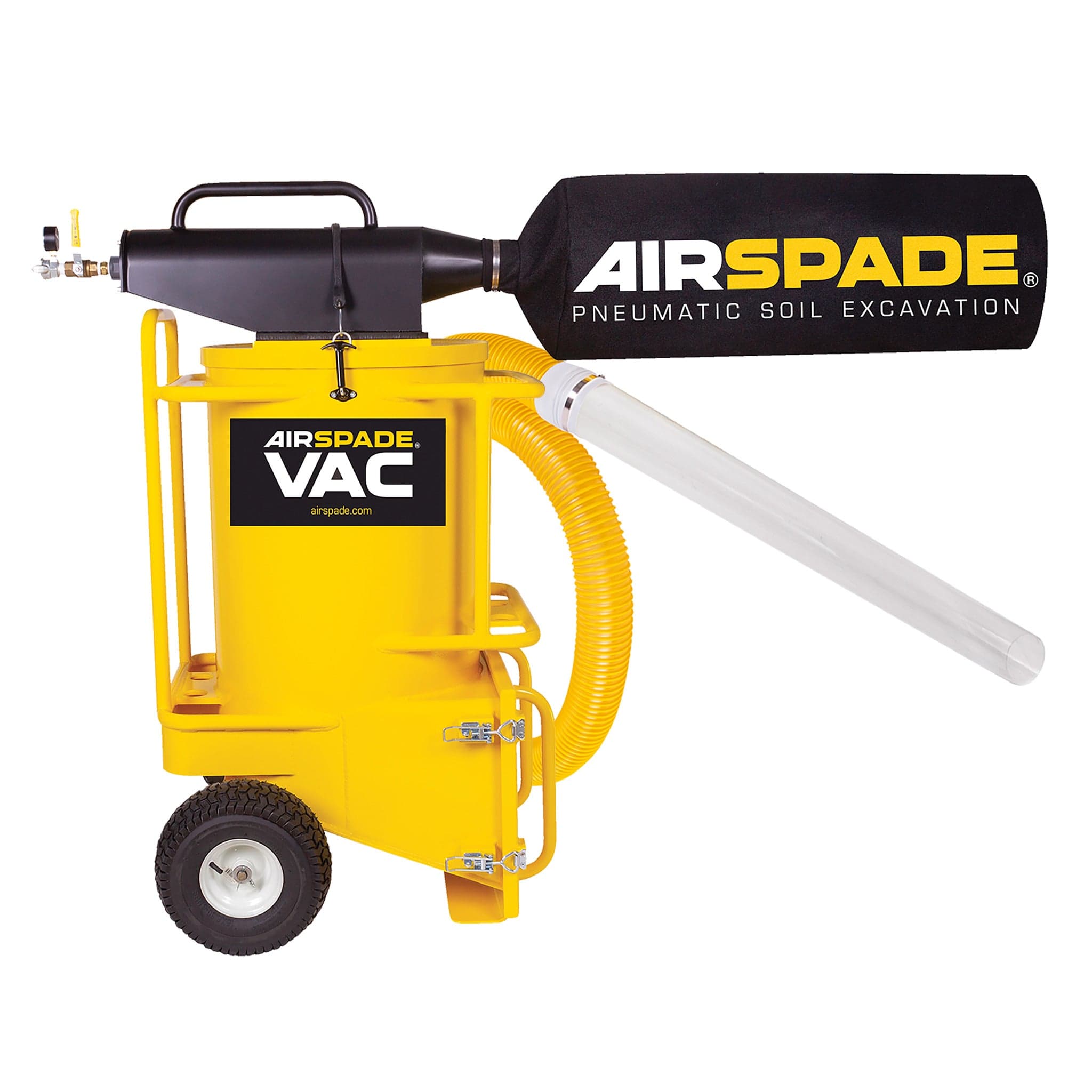

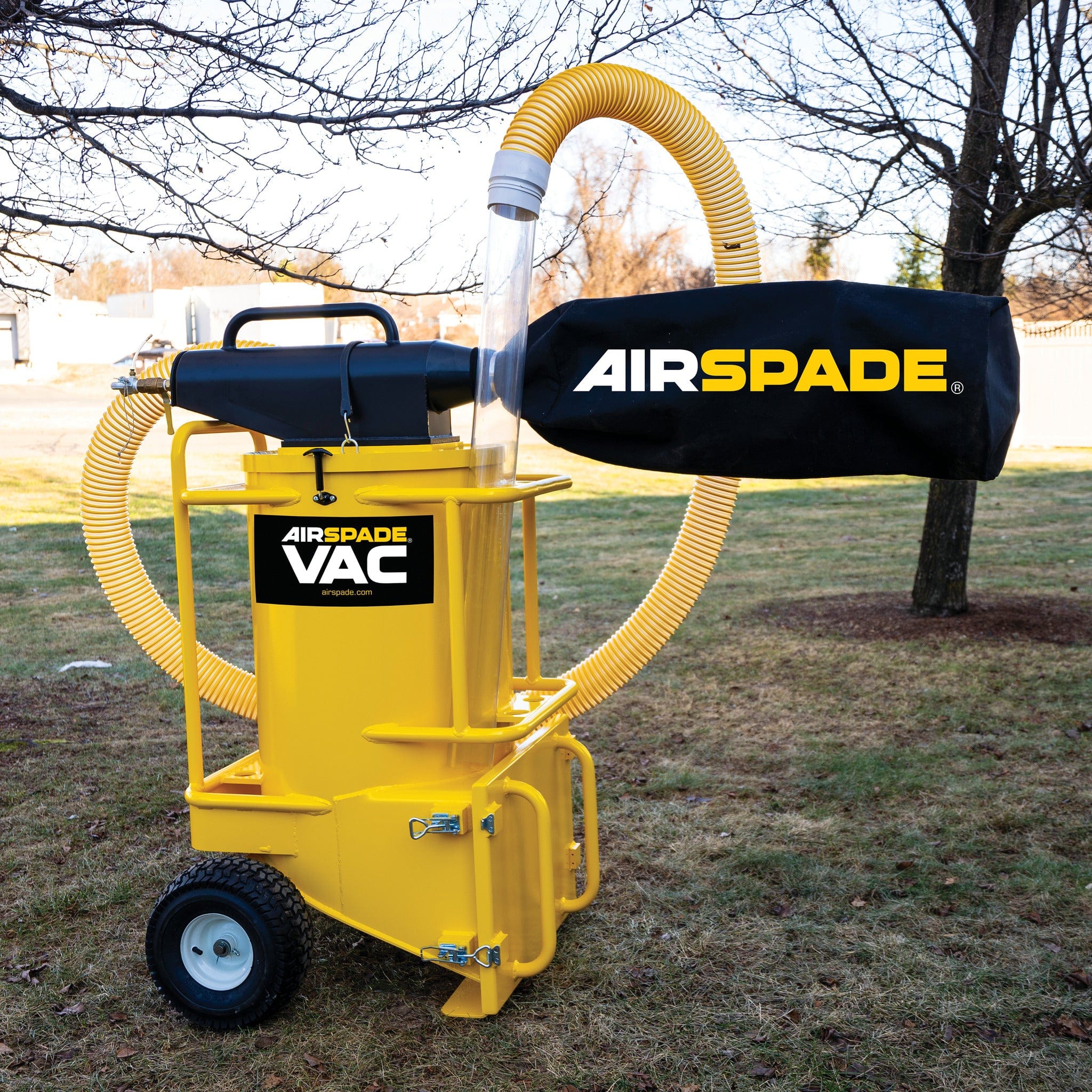

AirVac Vacuum Excavator Part Number: AVU16540

Rollover to zoomClick to view larger

Read Reviews

$14,500.00

Quantity

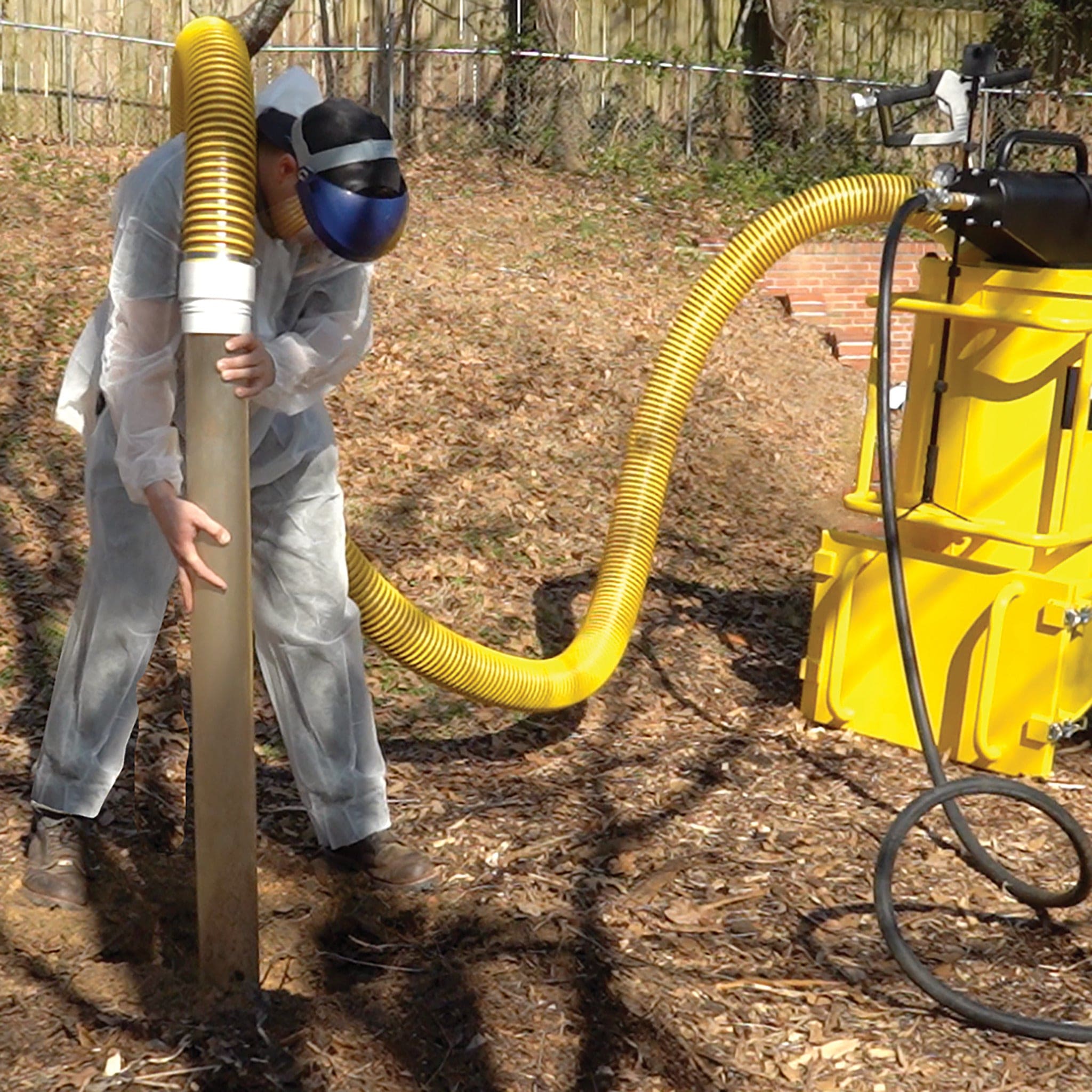

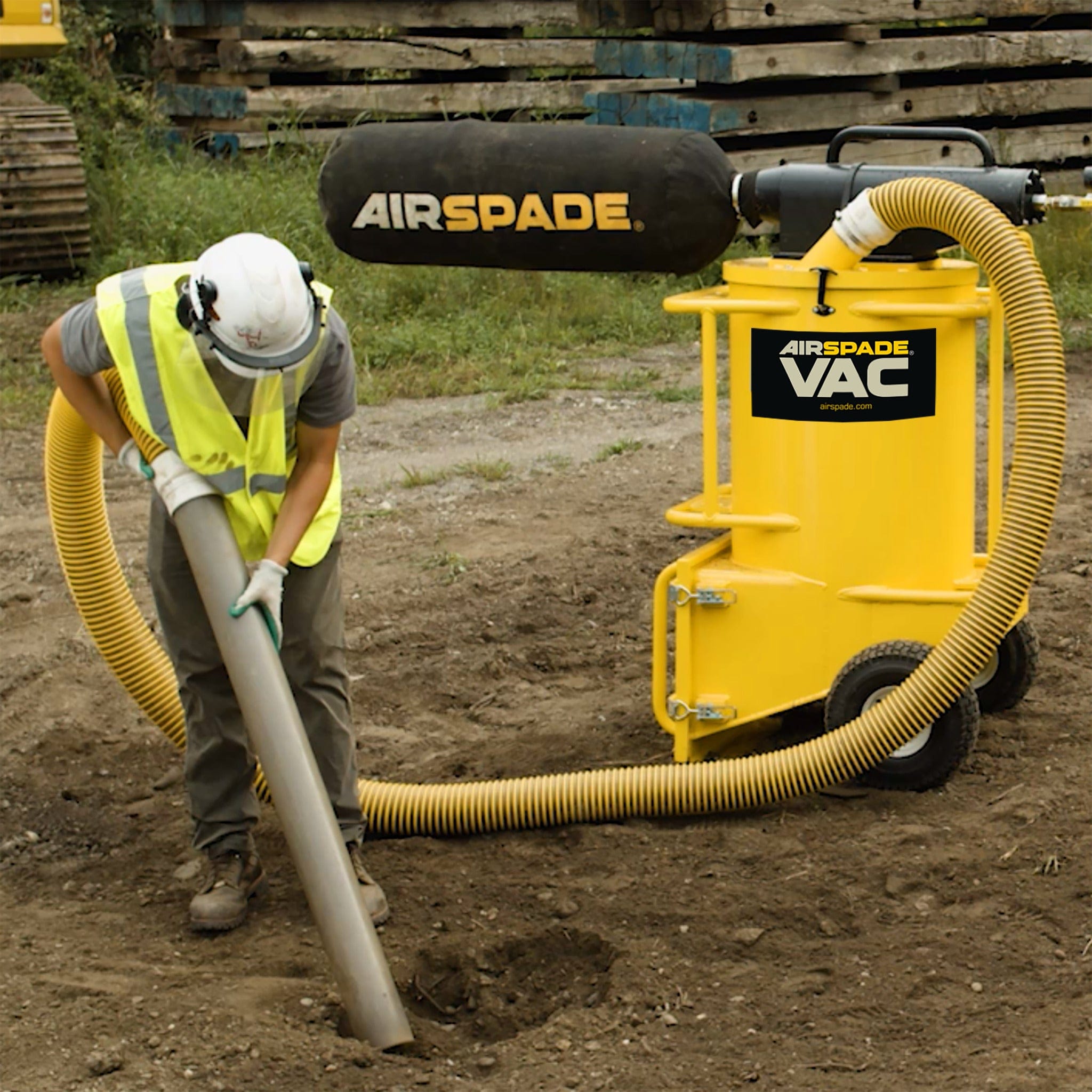

Powered by compressed air, AirVac is the mobile alternative to large, expensive vacuum trucks. Effectively vacuums up to 2 cubic ft/min of spoils including dirt, sand, gravel, small rocks, and muck.

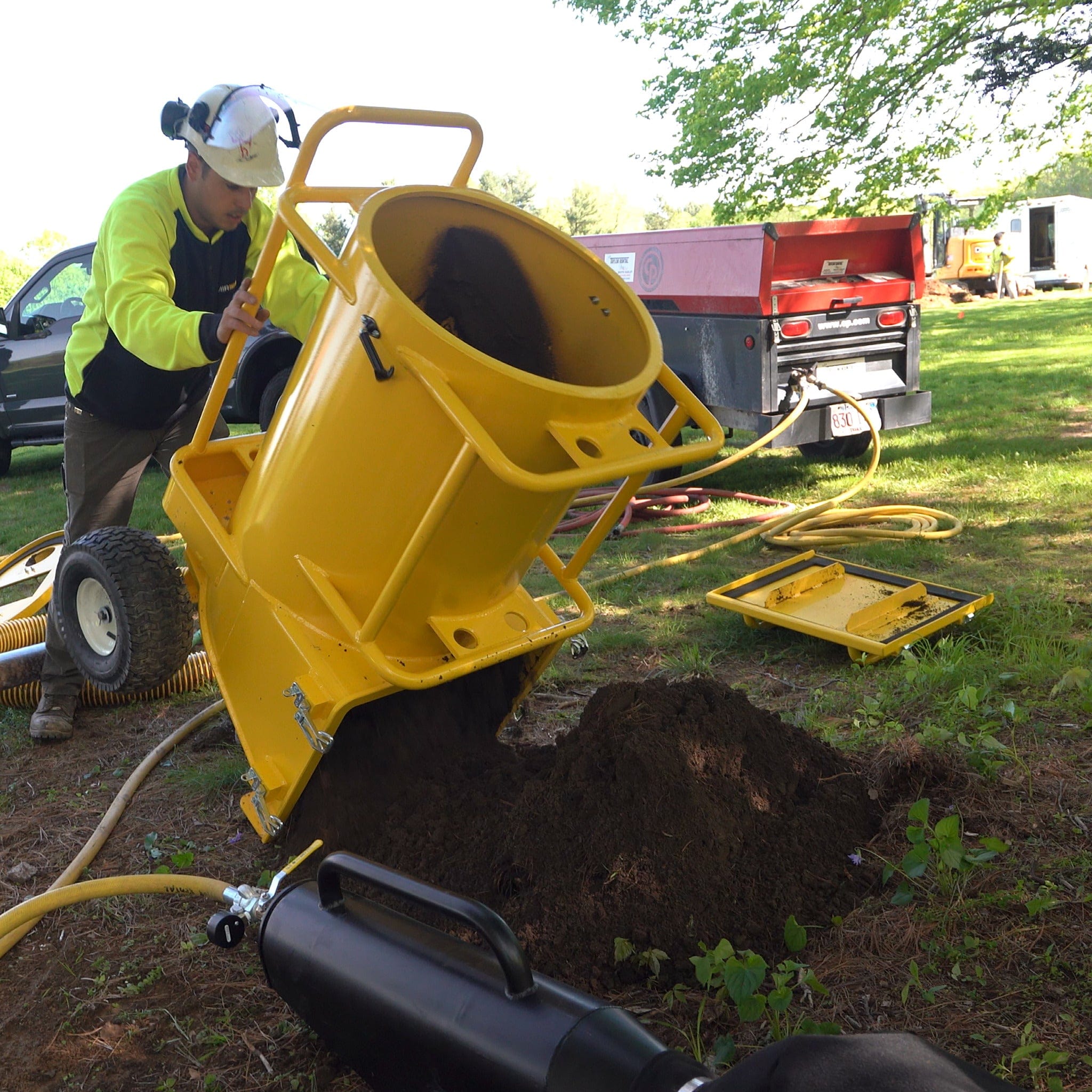

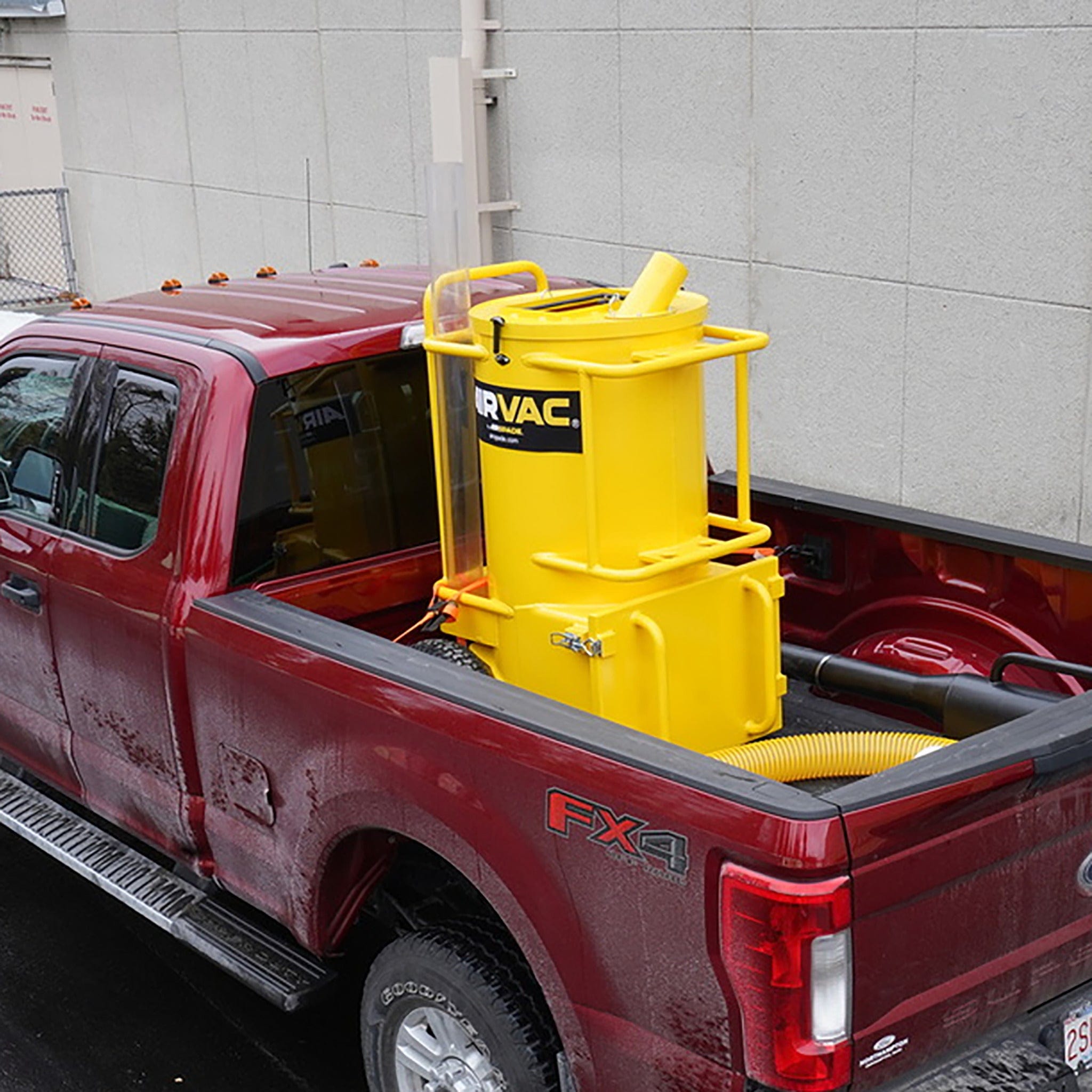

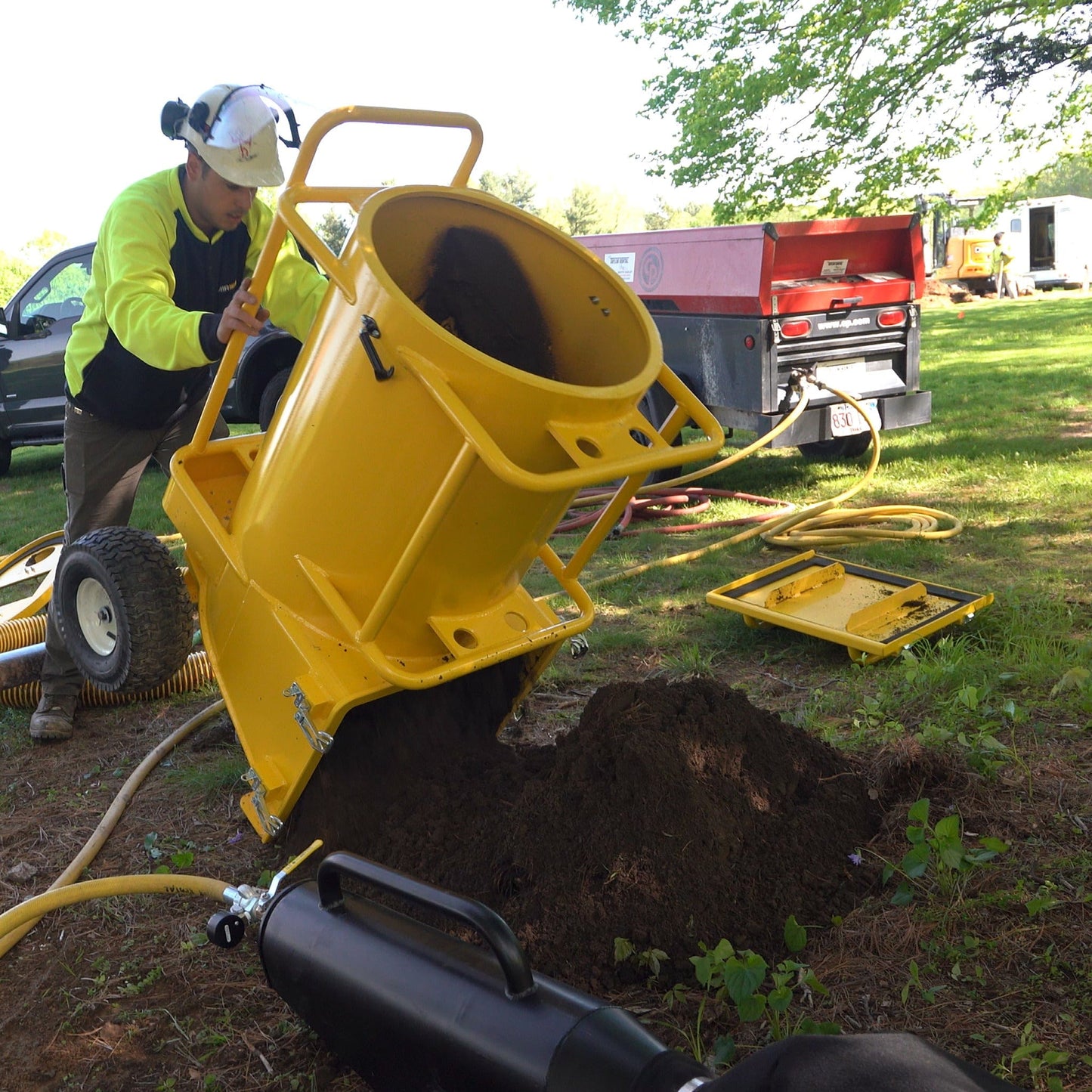

Designed to run off a standard, 185 cfm tow-behind air compressor, the AirVac features a powerful multi-stage venturi vacuum engine with no motors or moving parts to wear out. Tank capacity of 11 cubic ft. (82 gallons) with an extra-wide dump door facilitates emptying spoils for backfilling. Washable exhaust filter bag captures dust and eliminates need for internal filter. Rugged 15" pneumatic tires provide superior maneuverability. Featuring all aluminum construction and heavy-duty side rails, loading the AirVac onto the bed of a pickup truck is an easy task.

Made in USA.

Download Product Flyer

For additional information including manufacturing lead time, contact:

AirSpade National Sales Manager
Phone: 413-594-4400 x335
Email: cschoen@airspade.com

FeaturesIncludesSpecificationsLiteratureReplacement PartsLead TimeReviewsProp. 65 Warning

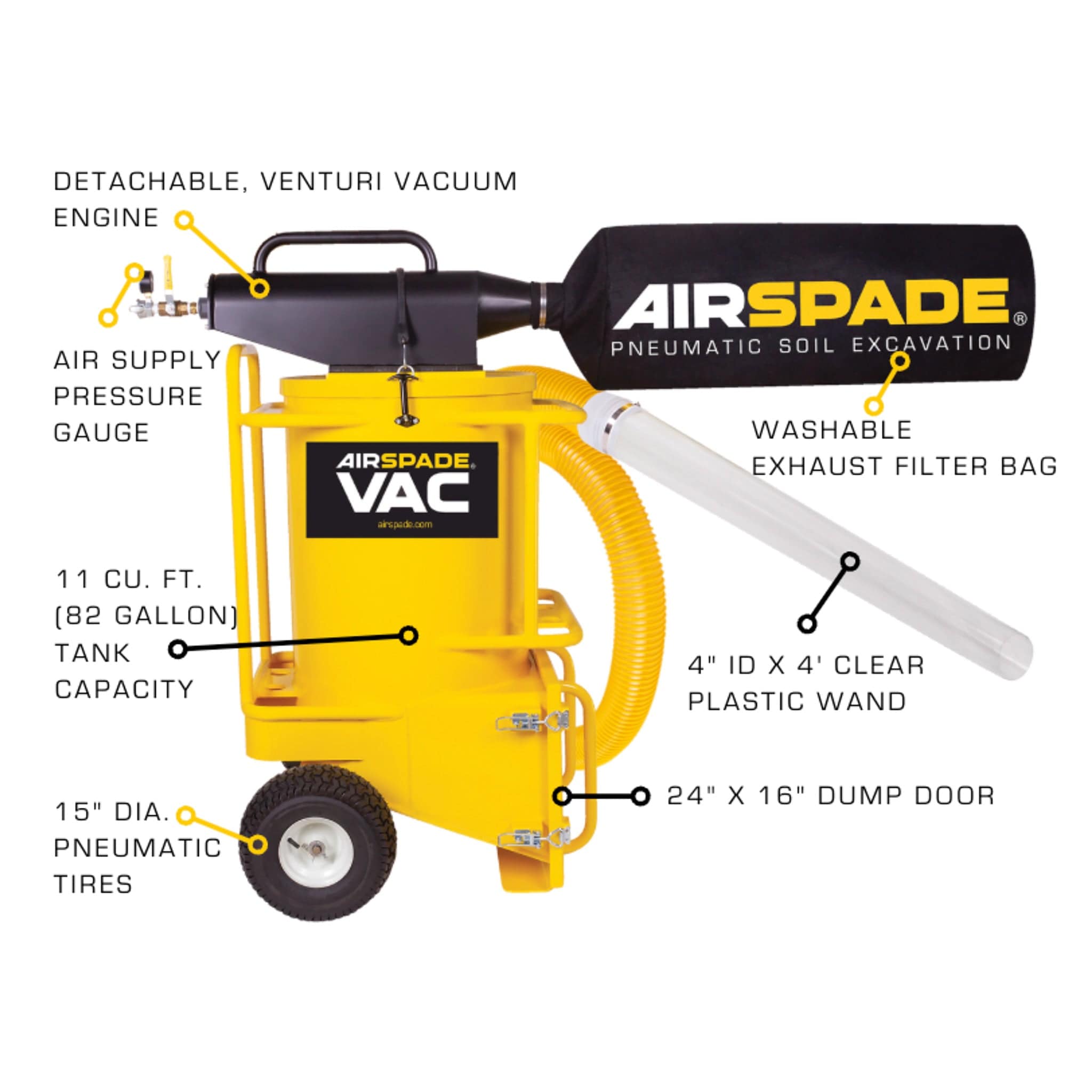

Features

Heavy-duty, all aluminum construction
11 cubic ft (82 gallon) capacity tank
24" x 16" dump door
Removable, venturi vacuum engine assembly
Washable exhaust filter bag
15" diameter pneumatic tires
Air supply pressure gauge
3/4" FNPT compressed air inlet with Universal Coupler
4" ID x 15 ft heavy-duty, lightweight vacuum hose
4" ID x 4 ft clear plastic vacuum wand

Includes

(1) AirVac Engine and Tank Assembly
(1) 4" x 15' Lightweight Vacuum Hose
(1) 4' Vacuum Wand
(1) Operations Manual

Specifications

Part Number	Inlet	Min. Compressor Required (hp)	Noise Level (dB)	Flow (cfm)	Vacuum Lift (in H20)	Dimensions (L" x W" x H")	Weight (lbs)
Part Number AVU16540	Inlet 3/4	Min. Compressor Required (hp) 36	Noise Level (dB) 99	Flow (cfm) 750	Vacuum Lift (in H20) 262	Dimensions (L" x W" x H") 79 x 38 x 61.5	Weight (lbs) 218
