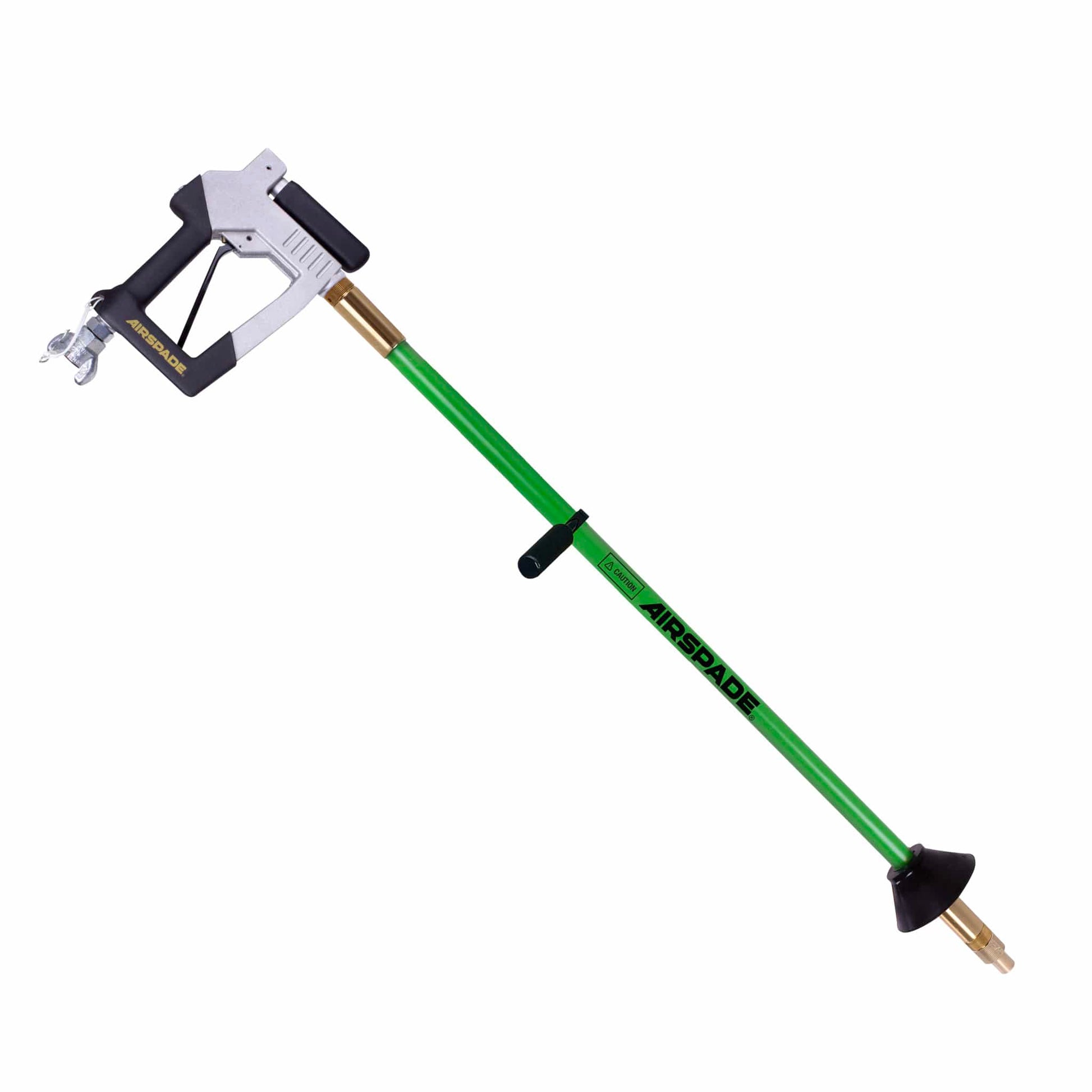

AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel

Name: AirSpade 4000 Utility Series - 105 cfm with 4 Ft Barrel
Brand: AirSpade
SKU: ASU4105G4
Price: 1855.00 USD
Availability: InStock

1 13

Part Number: ASU4105G4

Rugged, ergonomic handle with plastic-coated grip
Retractable stabilizer bar and integral air-pressure gauge
Dead-man trigger with trigger guard

See more details

$1,855.00

Product variants

View full details

Overview

Setting a new standard for air excavation tools, the Utility AirSpade 4000 Series harnesses the power of compressed air to safely uncover underground utility lines without harm. AirSpade's high-performance, proprietary Supersonic Nozzle generates a laser-like jet that moves at twice the speed of sound for faster, more effective digging. With non-sparking bronze nozzle, brass components, electrically insulated 4 ft. barrel rated to 300kV, and a lightweight, ergonomic handle, the Utility AirSpade 4000 maximizes jobsite safety while minimizing operator fatigue. Aluminum handle features full size grip opening to accommodate linesman's gloves. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Retractable handle provides superior operator control. Integral pressure gauge ensures optimal digging performance.

Resources

Features

Rugged, ergonomic handle with plastic-coated grip
Retractable stabilizer bar and integral air-pressure gauge
Dead-man trigger with trigger guard
Insulated, 4 Ft. fiberglass barrel rated up to 300kV
Non-sparking Brass barrel sleeves and threaded connectors
Adjustable, rubber spray shield
Non-sparking, Nickel Aluminum Bronze supersonic nozzle; 105, 150 and 225 cfm available
Inlet: 3/4 NPT
Chicago-style swivel connector
Detachable, auxiliary handle

Includes

(1) Utility AirSpade 4000 Handle
(1) 4 Ft. insulated, fiberglass barrel with dirt shield
(1) 105 cfm non-sparking bronze supersonic nozzle
(1) Detachable, auxiliary handle

Typical Applications

Electric Power Lines
Gas Pipes
Water & Sewer Lines
Telecommunications Lines & Fiber Optics

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

Limited Warranty – One Year Warranty Period. See more details.

How does AirSpade work?

AirSpade's patented supersonic nozzle creates a focused Mach 2 air jet that fractures soil while leaving roots, utilities, pipes, and cables largely unharmed.

Which AirSpade series is right for me?

The right series depends on your application, preferred handle style, and compressor capacity. The 2000 Series is designed for arbor and landscape work, the 4000 Series is built for utility excavation, and the 5000 Series features an inline handle design and is available in both Arbor and Utility configurations. Compare all series in our AirSpade Series Comparison Guide.

What size air compressor do I need?

Your compressor should be rated higher than the AirSpade nozzle you are using. Using a compressor that is too small will reduce performance. See our Compressed Air Requirements Guide.

What size nozzle should I use?

Nozzle selection depends on the desired excavation rate and available airflow. Larger nozzles excavate faster but require more air. Read more on Digging with AirSpade.

In what types of soil will an AirSpade work?

AirSpade works in most soils, including compacted and hard clay. It is generally not effective in solid rock or hard frozen ground. Learn more in our Soil Characteristics Guide.

What size air hose do I need?

Air hose size affects pressure and performance. For most AirSpade applications, 1-inch ID hose or larger is recommended. See our Compressed Air Requirements Guide.

Will higher pressure make the AirSpade work better?

No. AirSpade nozzles are designed to operate optimally at 90 psig. Higher pressure can actually reduce performance while consuming more air.

Part Number	Compressed Air Inlet (in)	Min. Size Air Compressor (hp)	Compressed Air Usage (cfm)	Soil Excavation Rate (cubic ft/min)	Noise Level (dBA)	Dimensions (L" x W" x H")	Weight (lbs)
ASU4105G4	3/4	23	105	0.9 - 1.5	116	55.5 X 13.5 X 5.5	10
ASU4150G4	3/4	33	150	1.2 - 1.8	122	55.7 X 13.5 X 5.5	10.1
ASU4225G4	3/4	50	225	1.7 - 2.3	124	55.8 X 13.5 X 5.5	10.2
