AirSpade 4000 Utility Series Kit - 105 cfm with 4 Ft Barrel & 3 Ft Extension

Name: AirSpade 4000 Utility Series Kit - 105 cfm with 4 Ft Barrel & 3 Ft Extension
Brand: AirSpade
SKU: ASU4105KT
Price: 3183.69 USD
Availability: InStock

1 14

Part Number: ASU4105KT

Utility AirSpade handle assembly with Chicago-style, swivel connector
Insulated, 4 Ft. fiberglass barrel rated up to 300kV with dirt shield
3 Ft. insulated extension and non-sparking Brass coupler

See more details

$3,183.69

Product variants

View full details

Overview

Kit includes the most popular components and accessories utilized by utility workers. Features the powerful Utility AirSpade 4000 air-excavation tool. Equipped with non-sparking bronze nozzle and brass components. Insulated, 4 ft. fiberglass barrel, rated up to 300kV, provides protection from buried electrical lines. With a lightweight, ergonomic handle, the Utility AirSpade 4000 maximizes job site safety while minimizing operator fatigue. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Retractable handle provides superior operator control.

Resources

Features

Utility AirSpade handle assembly with Chicago-style, swivel connector
Insulated, 4 Ft. fiberglass barrel rated up to 300kV with dirt shield
3 Ft. insulated extension and non-sparking Brass coupler
45 degree non-sparking Brass angled adapter
105 cfm non-sparking Nickel Aluminum Bronze nozzle; 150 and 225 cfm available
1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
Heavy-duty, plastic storage case with lock
Detachable, auxiliary handle

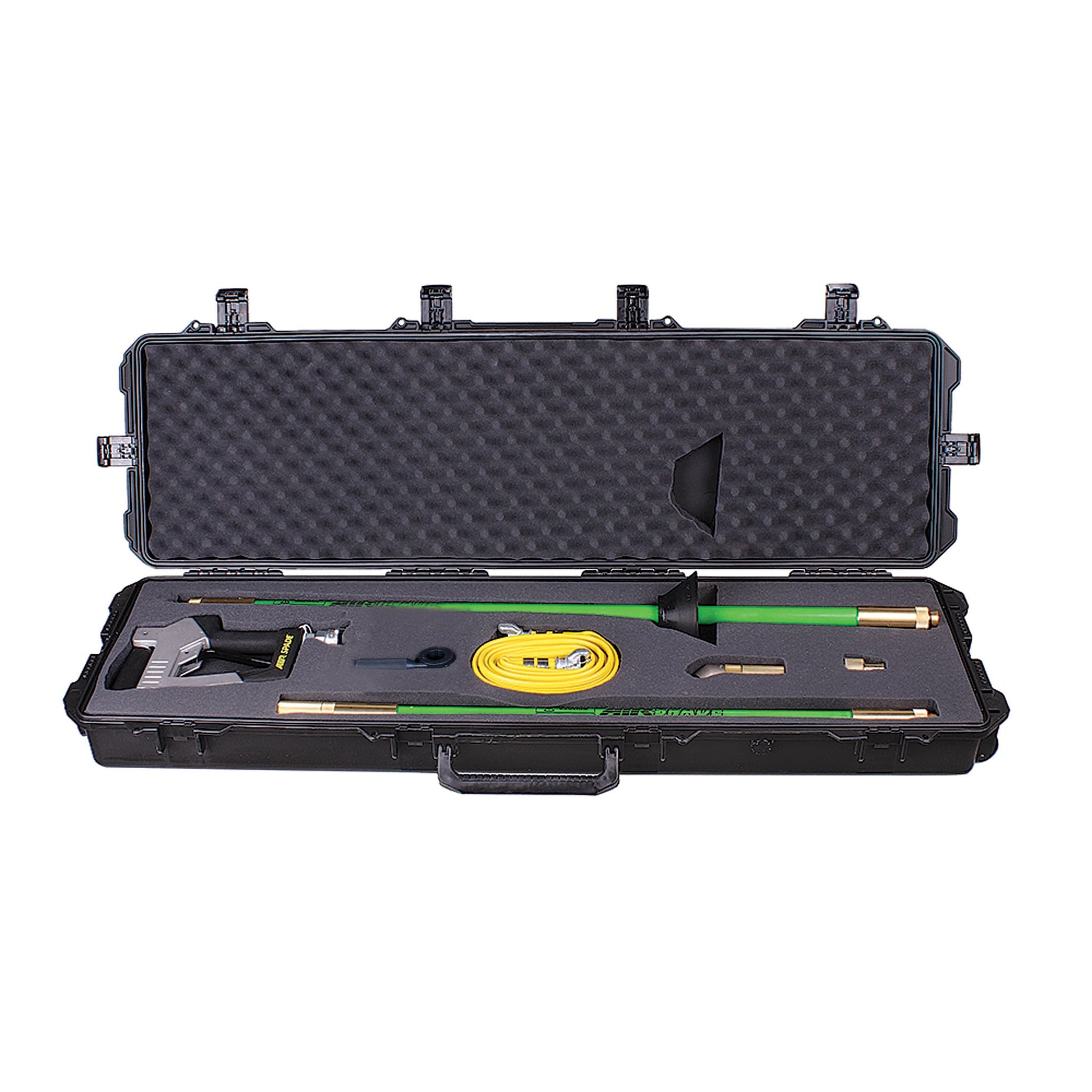

Includes

(1) Utility AirSpade 4000 Handle
(1) 4 Ft. insulated, fiberglass barrel with dirt shield
(1) 3 Ft. insulated extension

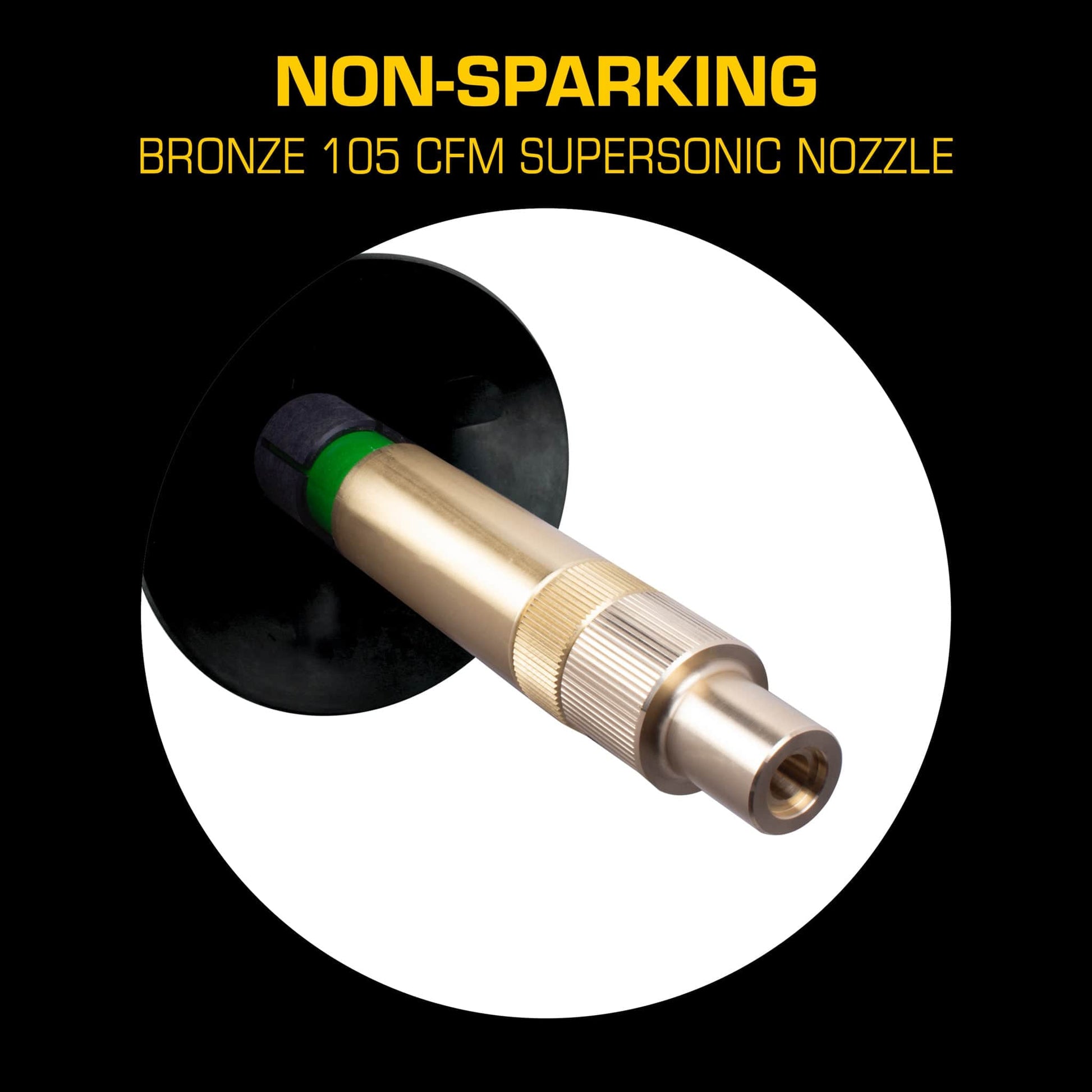

(1) 105 cfm non-sparking Nickel Aluminum Bronze supersonic nozzle
(1) Plastic locking storage case
(1) 45 degree non-sparking Brass angled adapter
(1) 1" ID x 10 Ft. lightweight air hose with Chicago-style connectors
(1) Detachable, auxiliary handle
(1) Operations Manual

Typical Applications

Electric Power Lines
Gas Pipes
Water & Sewer Lines
Telecommunications Lines & Fiber Optics

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

Limited Warranty – One Year Warranty Period. See more details.

How does AirSpade work?

AirSpade's patented supersonic nozzle creates a focused Mach 2 air jet that fractures soil while leaving roots, utilities, pipes, and cables largely unharmed.

Which AirSpade series is right for me?

The right series depends on your application, preferred handle style, and compressor capacity. The 2000 Series is designed for arbor and landscape work, the 4000 Series is built for utility excavation, and the 5000 Series features an inline handle design and is available in both Arbor and Utility configurations. Compare all series in our AirSpade Series Comparison Guide.

What size air compressor do I need?

Your compressor should be rated higher than the AirSpade nozzle you are using. Using a compressor that is too small will reduce performance. See our Compressed Air Requirements Guide.

What size nozzle should I use?

Nozzle selection depends on the desired excavation rate and available airflow. Larger nozzles excavate faster but require more air. Read more on Digging with AirSpade.

In what types of soil will an AirSpade work?

AirSpade works in most soils, including compacted and hard clay. It is generally not effective in solid rock or hard frozen ground. Learn more in our Soil Characteristics Guide.

What size air hose do I need?

Air hose size affects pressure and performance. For most AirSpade applications, 1-inch ID hose or larger is recommended. See our Compressed Air Requirements Guide.

Will higher pressure make the AirSpade work better?

No. AirSpade nozzles are designed to operate optimally at 90 psig. Higher pressure can actually reduce performance while consuming more air.

Part Number	Compressed Air Inlet (in)	Min. Size Air Compressor (hp)	Soil Excavation Rate (cubic ft/min)	Noise Level (dBA)	Flow (cfm)	Dimensions (L" x W" x H")	Weight (lbs)
ASU4105KT	3/4	23	0.9 - 1.5	116	105	97.3 X 13.5 X 5.5	17.6
ASU4150KT	3/4	33	1.2 - 1.8	122	150	97.5 X 13.5 X 5.5	17.7
ASU4225KT	3/4	50	1.7 - 2.3	124	225	97.6 X 13.5 X 5.5	17.7
