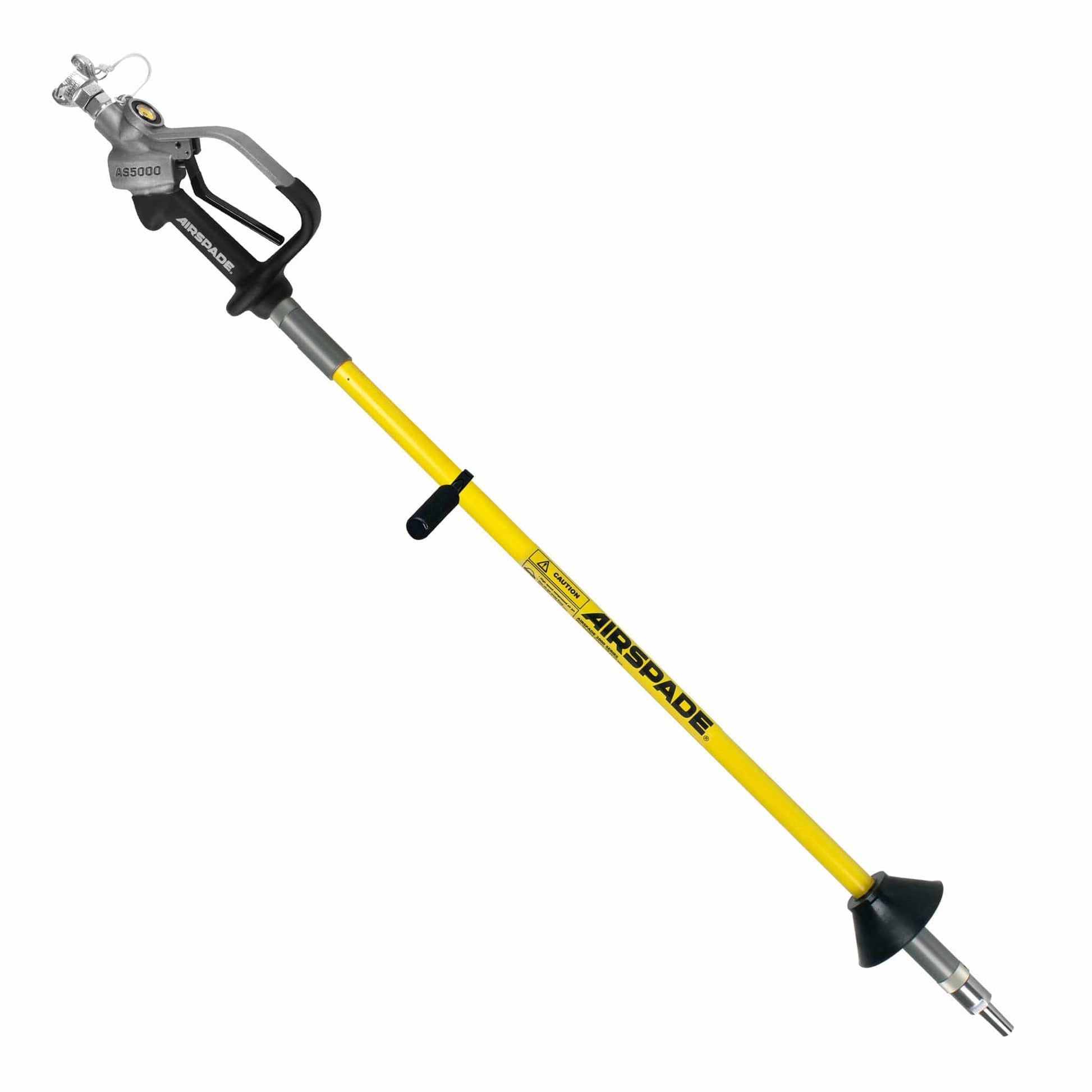

AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel

Part Number:

AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
ASA54025
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
AirSpade 5000 Arbor Series - 25 cfm with 4 Ft Barrel (ASA54025)
Regular price $1,707.48
Regular price Sale price $1,707.48
Sale Sold out

Safely uncover sensitive tree roots and other underground objects with the AirSpade 5000 Arbor Series -- the latest innovation in the AirSpade product line. Featuring an in-line style handle, AirSpade 5000 Arbor is designed for air excavation applications where gripping the tool in a vertical position is preferred.

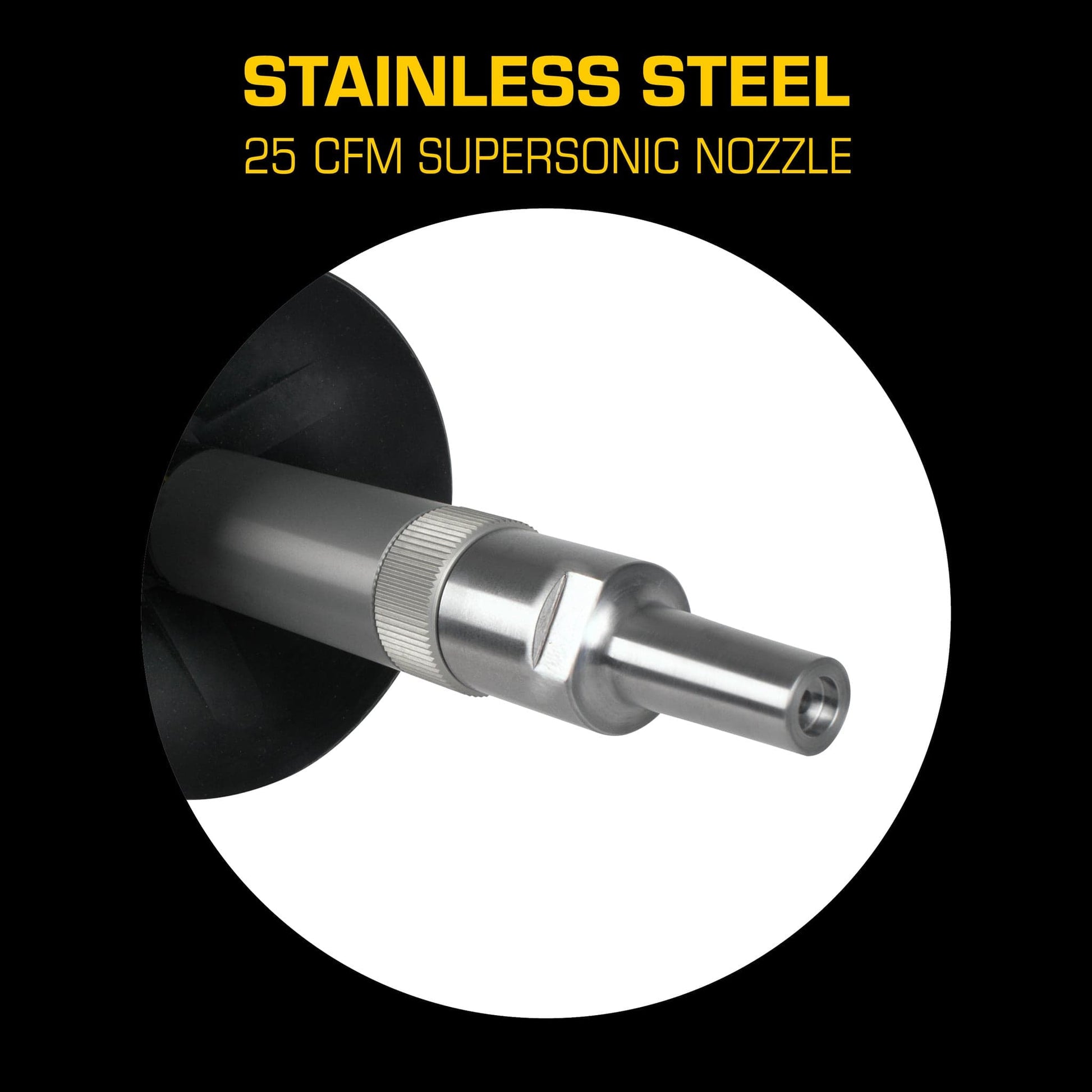

AirSpade 5000 Arbor harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade Supersonic Nozzle. Fabricated from extra-hardened stainless steel, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.

Rugged, lightweight aluminum handle features full-size grip opening to accommodate gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance.

Features screw-on, lightweight, fiberglass barrel. Adjustable dirt shield deflects soil and debris. Includes swivel type, 3/4" Universal Coupler.

For AS 5000 replacement handle, click here.

View full details

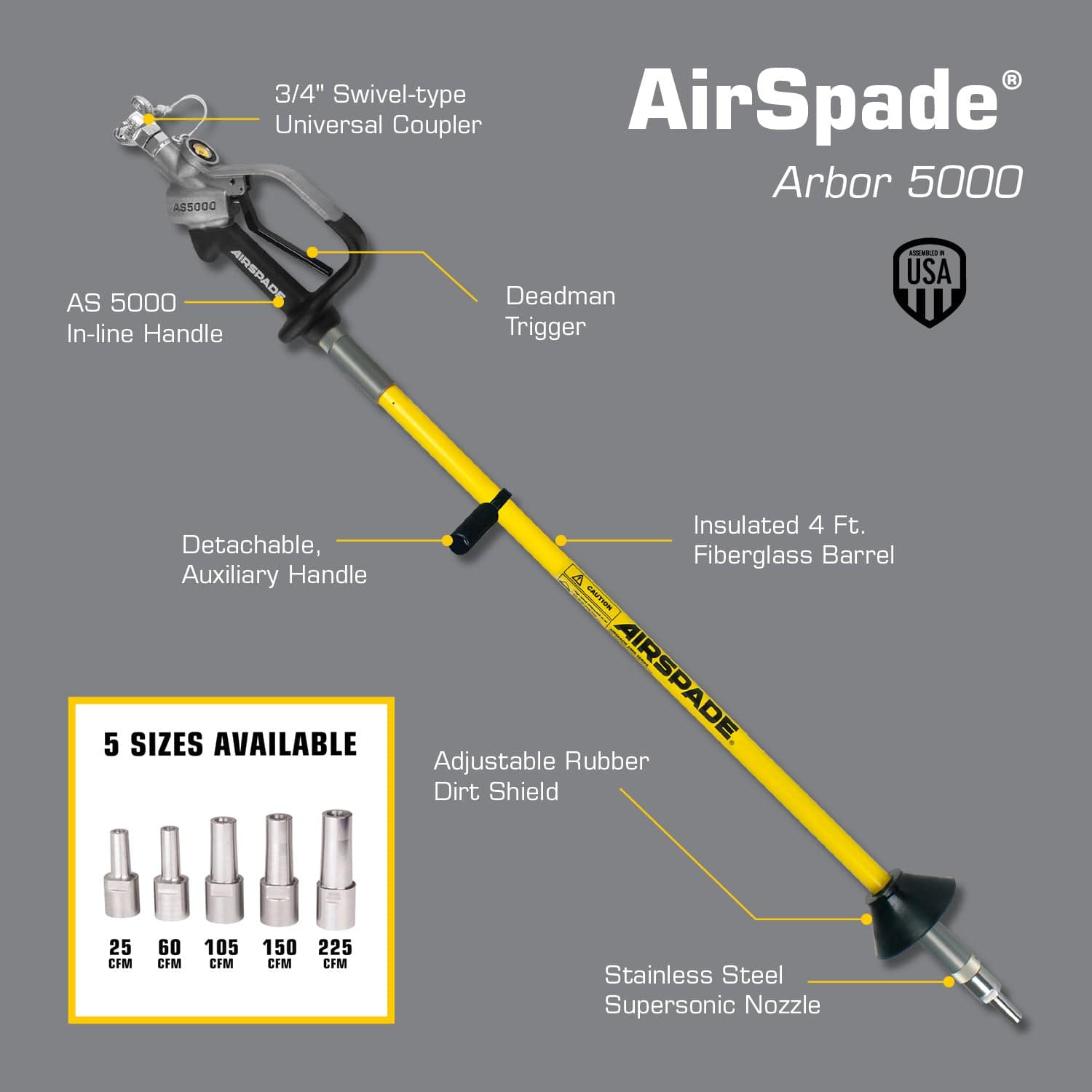

Features
  • AS 5000 Handle with 3/4'' NPT inlet
  • 3/4'' swivel type, Universal Coupler
  • Insulated, 4 Ft. fiberglass barrel
  • Adjustable, rubber dirt shield
  • 25 cfm stainless steel Supersonic Nozzle
  • Detachable, auxiliary handle
Includes
  • (1) AS 5000 Handle with 3/4'' swivel type, Universal Coupler
  • (1) 4 Ft. fiberglass insulated barrel with adjustable, rubber dirt shield
  • (1) 25 cfm stainless steel Supersonic Nozzle
  • (1) Detachable, auxiliary handle
  • (1) Operations Manual
Specifications
Part Number Inlet Min. Compressor Required (hp) Soil Excavation Rate (cubic ft/min) Noise Level (dB) Flow (cfm) Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASA54025 Inlet 3/4" Min. Compressor Required (hp) 5.6 Soil Excavation Rate (cubic ft/min) 0.4 - 0.9 Noise Level (dB) 108 Flow (cfm) 25 Dimensions
(L" x W" x H")
64 X 11 X 3.2
Weight (lbs) 9
Lead Time
Estimated 5 Days
Prop. 65 Warning

 WARNING : Cancer and Reproductive Harm - www.P65warnings.ca.gov
