AirSpade 5000 Arbor Series Kit - 150 cfm with 4 Ft Barrel

Name: AirSpade 5000 Arbor Series Kit - 150 cfm with 4 Ft Barrel
Brand: AirSpade
SKU: ASA50150KT
Price: 2486.77 USD
Availability: InStock

1 13

Part Number: ASA50150KT

AS 5000 Handle with 3/4'' NPT inlet
Swivel-type Universal Coupler
Insulated, 4 Ft. fiberglass barrel

See more details

$2,486.77

Bestseller

Product variants

View full details

Overview

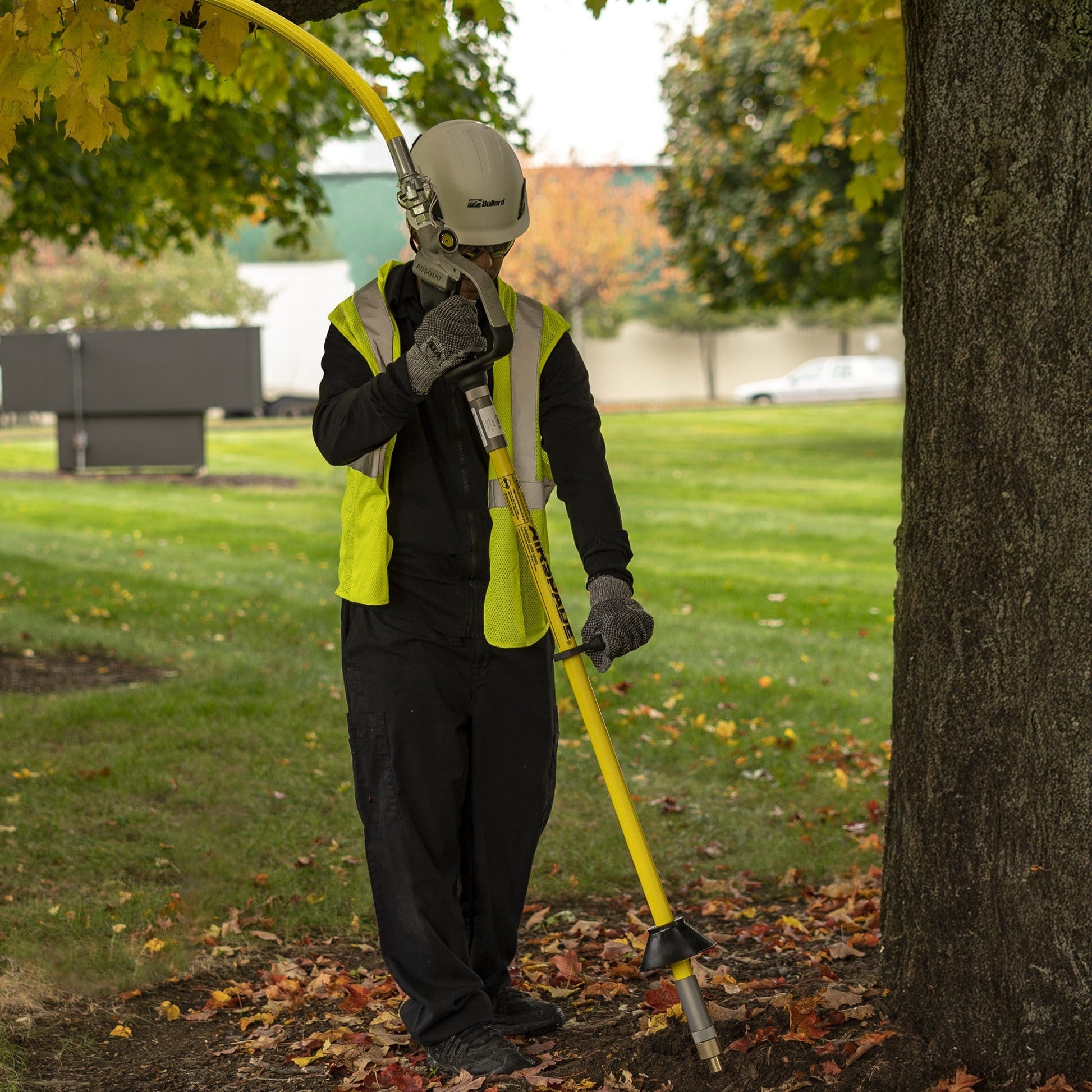

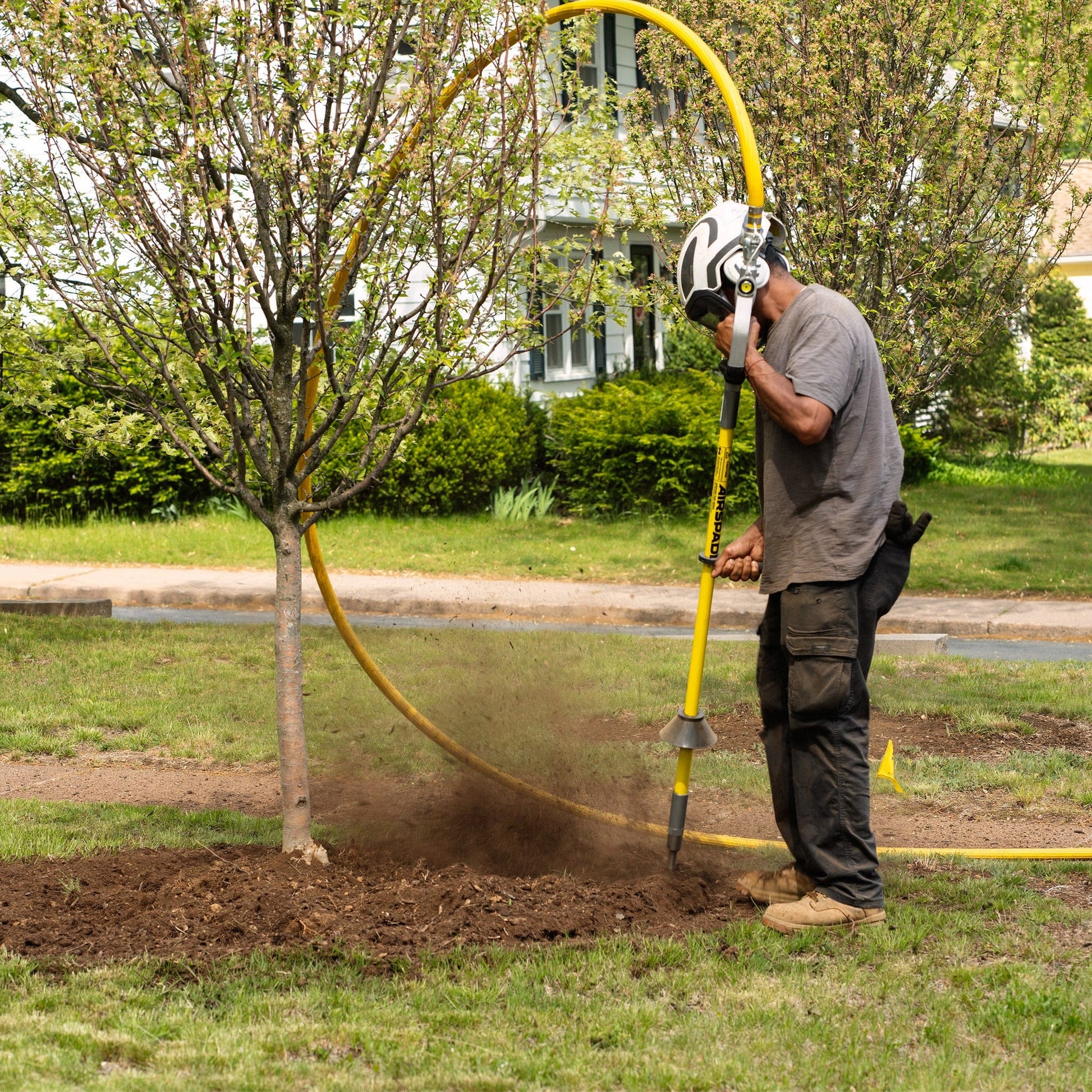

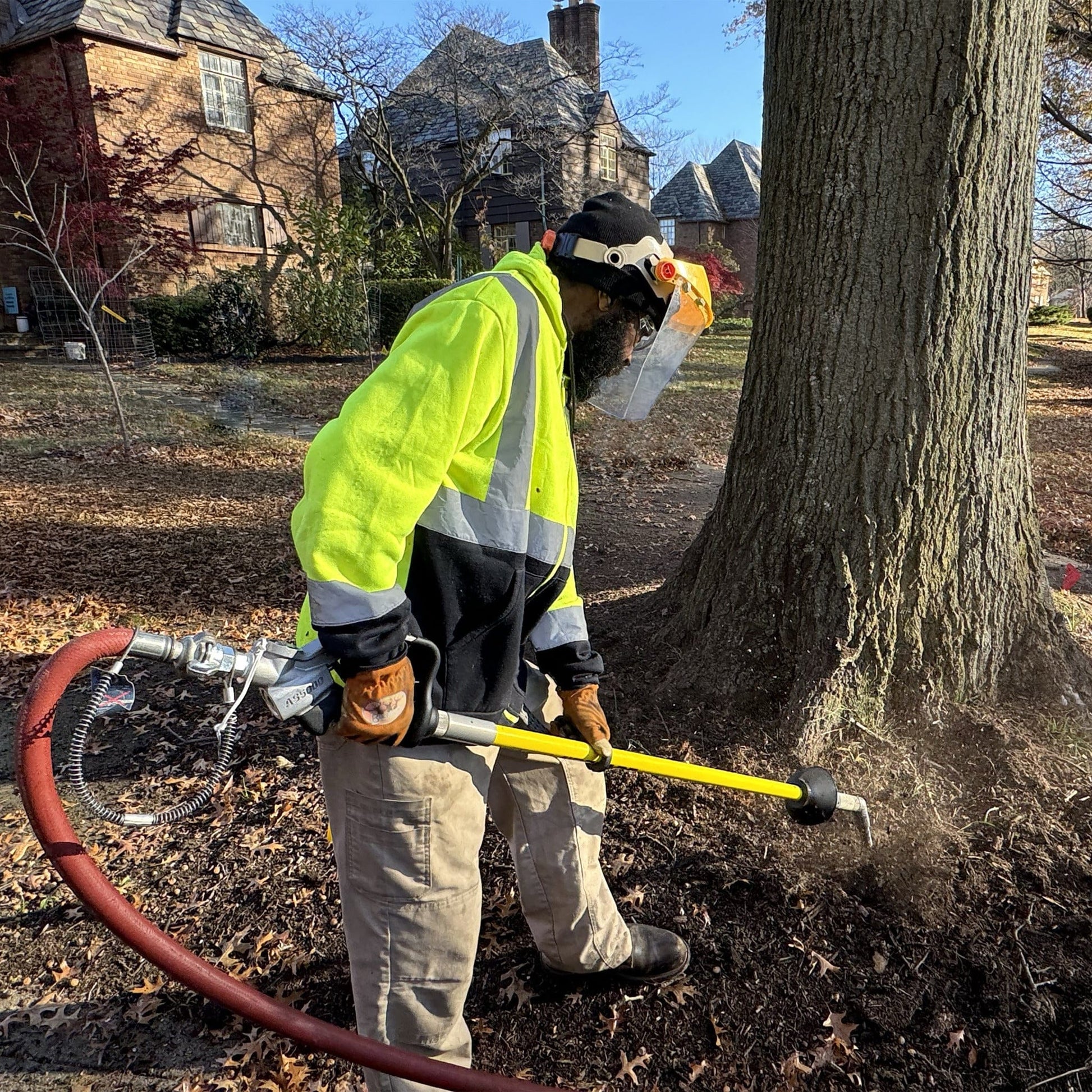

Kit features the powerful AirSpade 5000 Arbor air-excavation tool with AirSpade Supersonic Nozzle for superior digging performance. Ideal for sensitive arboreal work including vertical mulching, bare rooting, radial trenching, and soil aeration. In-line style handle designed for applications where gripping the tool in a vertical position is preferred.

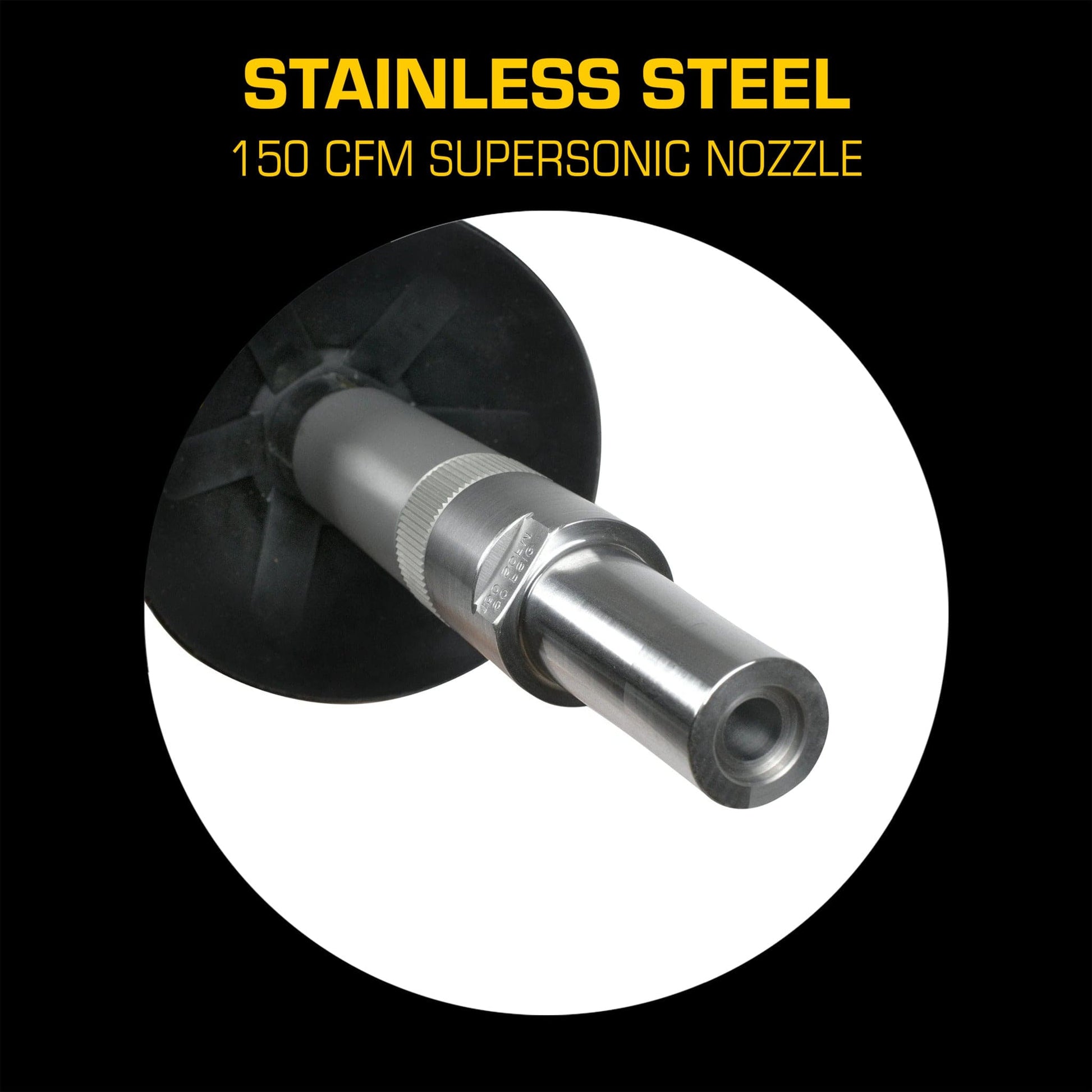

AirSpade 5000 Arbor harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade Supersonic Nozzle. Fabricated from extra-hardened stainless steel, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.

Rugged, lightweight aluminum handle features full-size grip opening to accommodate gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance. 3/4" NPT compressed air inlet equipped with 3/4" swivel-type Universal Coupler.

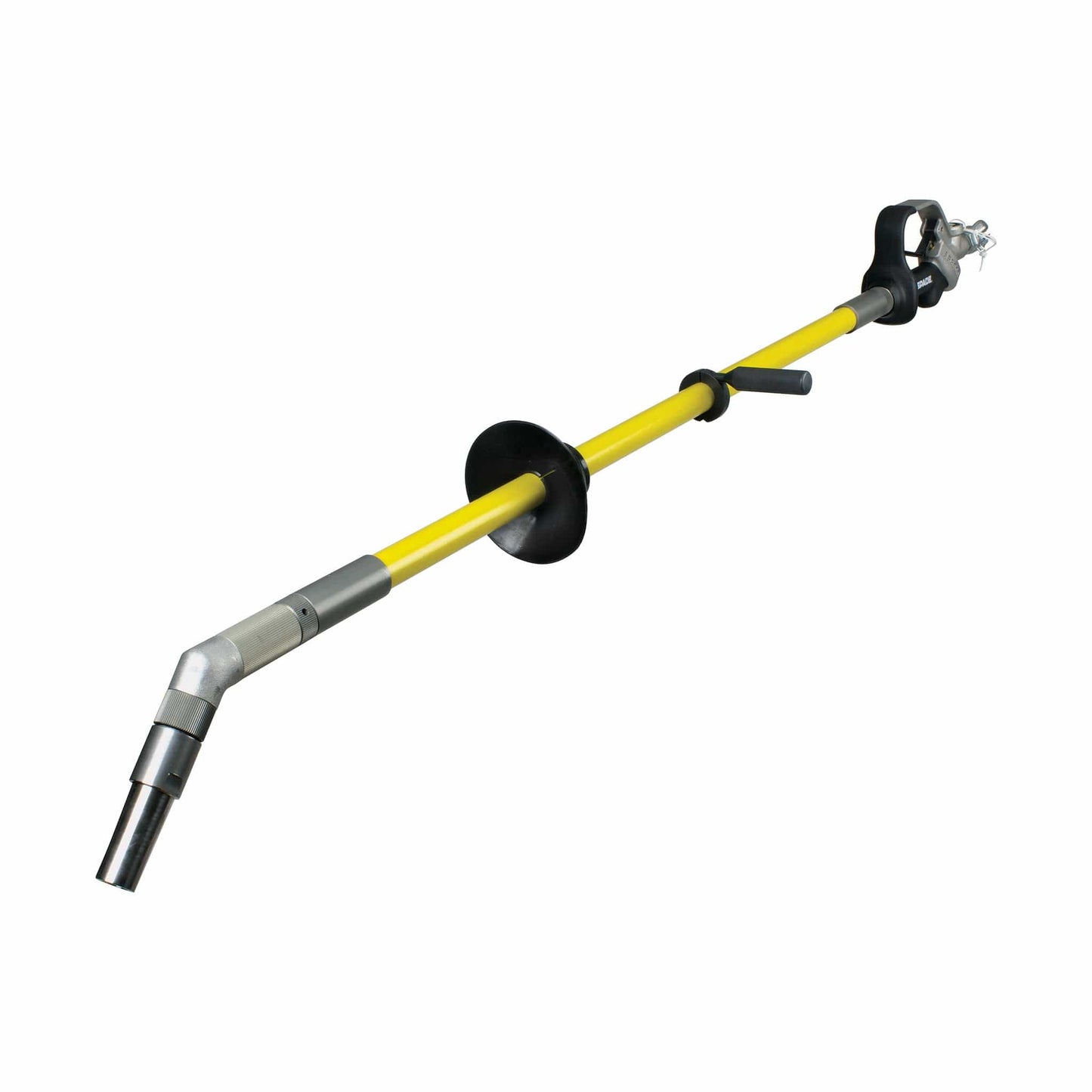

Features screw-on, lightweight, insulated fiberglass barrel. Adjustable, rubber dirt shield deflects soil and debris. Kit also includes 45-degree angled adaptor, 1" x 10' lightweight air hose, and heavy-duty, locking storage case. Detachable, auxiliary handle included.

For AS 5000 replacement handle, click here.

Resources

Features

AS 5000 Handle with 3/4'' NPT inlet
Swivel-type Universal Coupler
Insulated, 4 Ft. fiberglass barrel
Adjustable, rubber dirt shield
150 cfm stainless steel Supersonic Nozzle
Detachable, auxiliary handle
45-degree angled adaptor
1'' ID x 10' lightweight air hose with Universal Couplers
Heavy-duty, locking storage case

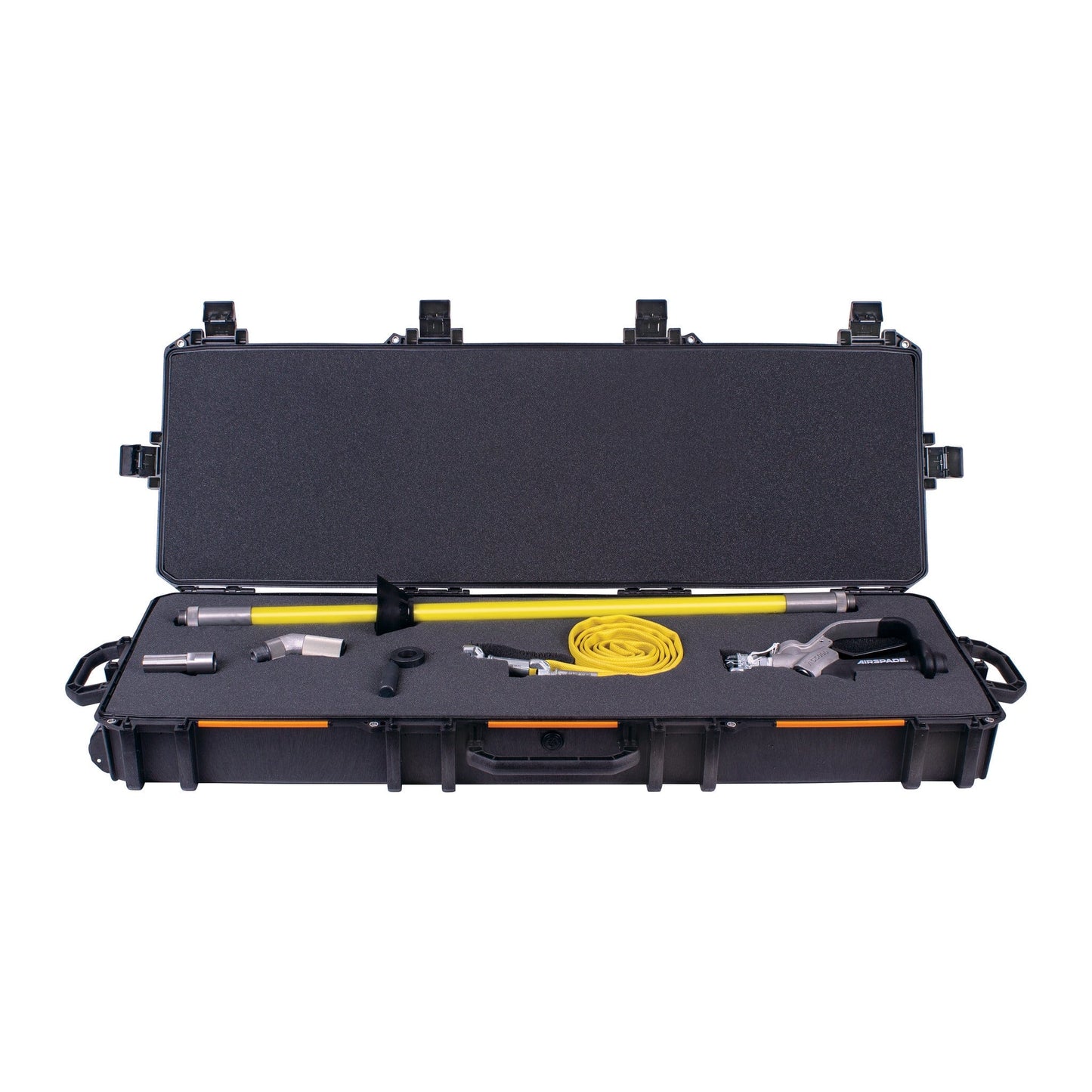

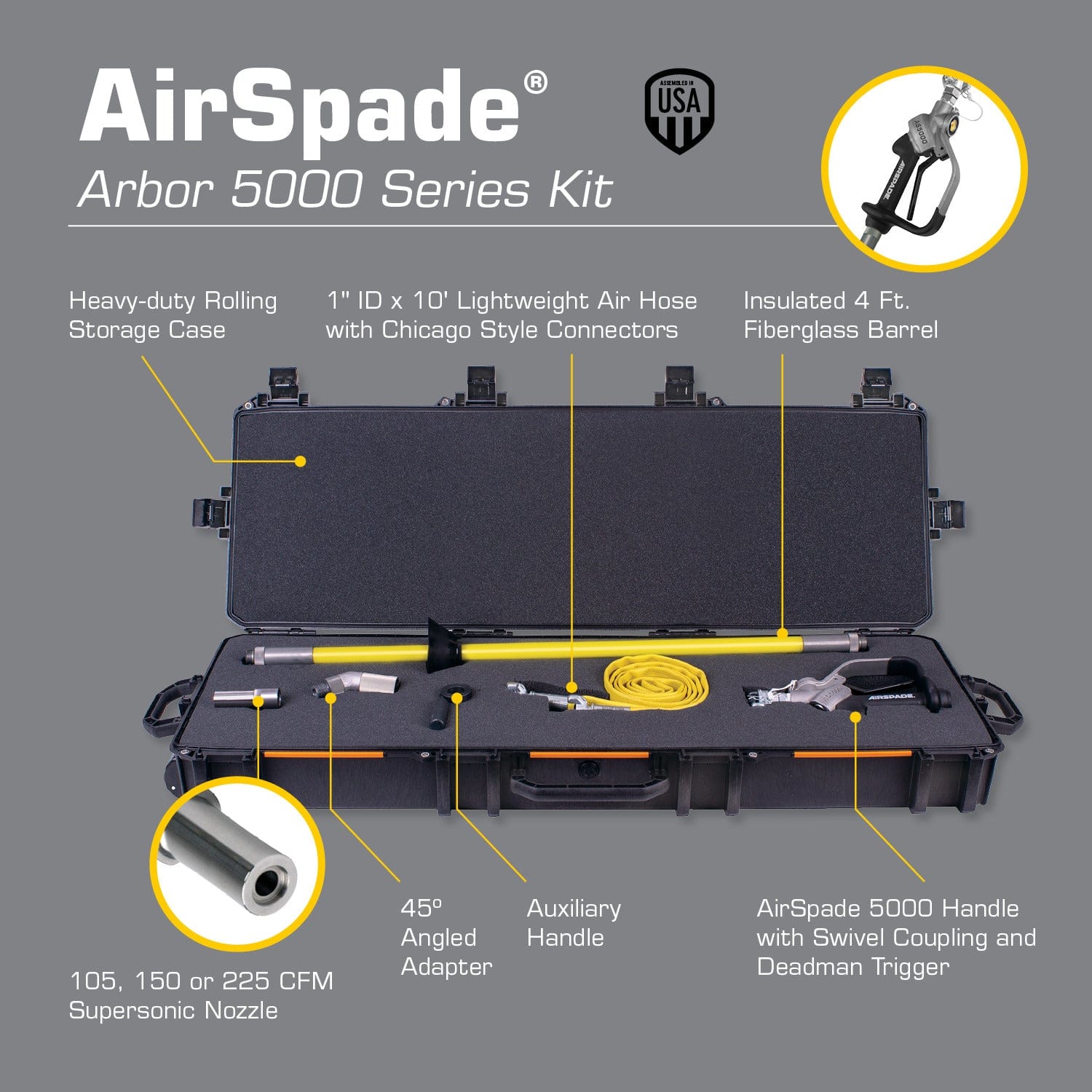

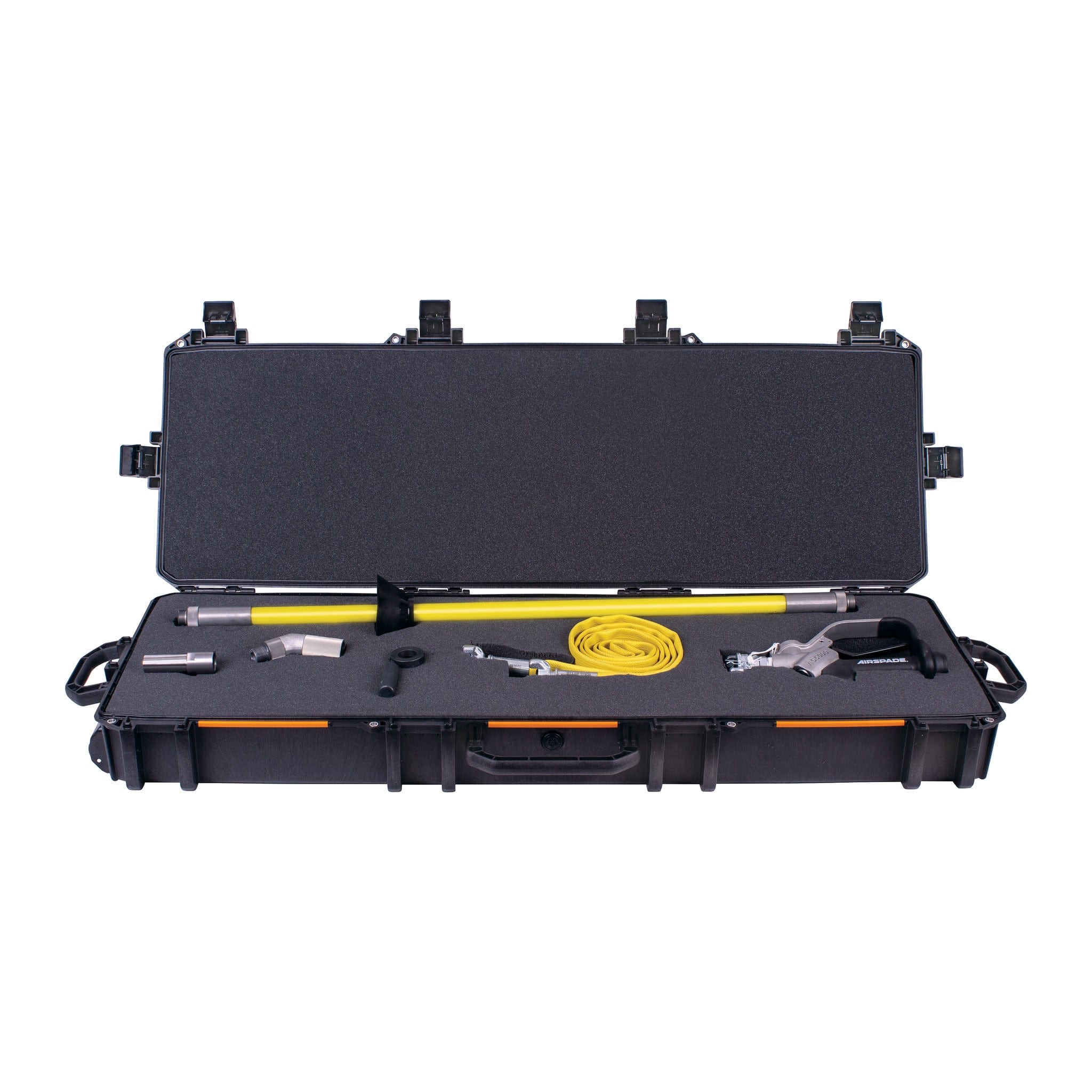

Includes

(1) AS 5000 Handle with swivel-type Universal Coupler
(1) 4 Ft. fiberglass insulated barrel with adjustable, rubber dirt shield
(1) 150 cfm stainless steel Supersonic Nozzle
(1) Detachable, auxiliary handle
(1) 45-degree angled adaptor
(1) 1'' ID x 10' Lightweight air hose with Universal Couplers
(1) Heavy-duty, locking storage case
(1) Operations Manual

Typical Applications

Arboriculture & Horticulture
Utility & Construction
Trench Rescue
De-mining
Environmental Remediation

Shipping & Returns

Lead time: 8 Days. Eligible for free ground shipping on domestic orders of $149 or more.

Returnable within 30 days. Must be in factory mint condition and is subject to a 25% restocking charge.

Read the full Shipping & Return policy here.

⚠️ WARNING: Cancer and Reproductive Harm - P65warnings.ca.gov

Warranty

Limited Warranty – One Year Warranty Period. See more details.

How does AirSpade work?

AirSpade's patented supersonic nozzle creates a focused Mach 2 air jet that fractures soil while leaving roots, utilities, pipes, and cables largely unharmed.

Which AirSpade series is right for me?

The right series depends on your application, preferred handle style, and compressor capacity. The 2000 Series is designed for arbor and landscape work, the 4000 Series is built for utility excavation, and the 5000 Series features an inline handle design and is available in both Arbor and Utility configurations. Compare all series in our AirSpade Series Comparison Guide.

What size air compressor do I need?

Your compressor should be rated higher than the AirSpade nozzle you are using. Using a compressor that is too small will reduce performance. See our Compressed Air Requirements Guide.

What size nozzle should I use?

Nozzle selection depends on the desired excavation rate and available airflow. Larger nozzles excavate faster but require more air. Read more on Digging with AirSpade.

In what types of soil will an AirSpade work?

AirSpade works in most soils, including compacted and hard clay. It is generally not effective in solid rock or hard frozen ground. Learn more in our Soil Characteristics Guide.

What size air hose do I need?

Air hose size affects pressure and performance. For most AirSpade applications, 1-inch ID hose or larger is recommended. See our Compressed Air Requirements Guide.

Will higher pressure make the AirSpade work better?

No. AirSpade nozzles are designed to operate optimally at 90 psig. Higher pressure can actually reduce performance while consuming more air.

Part Number	Compressed Air Inlet (in)	Min. Size Air Compressor (hp)	Soil Excavation Rate (cubic ft/min)	Noise Level (dBA)	Flow (cfm)	Dimensions (L" x W" x H")	Weight (lbs)
ASA50105KT	3/4	23	0.9 - 1.5	120	105	57.3 X 20 X 7.7	36
ASA50150KT	3/4	33	1.2 - 1.8	122	150	57.3 X 20 X 7.7	36
ASA50225KT	3/4	50	1.7 - 2.3	124	225	57.3 X 20 X 7.7	36
