AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel

Part Number:

AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
ASU50105KT
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
AirSpade 5000 Utility Series Kit - 105 cfm with 4 Ft Barrel (ASU50105KT)
Regular price $3,225.27
Regular price Sale price $3,225.27
Sale Sold out

Kit features the powerful AirSpade 5000 Utility air-excavation tool with AirSpade Supersonic Nozzle for superior digging performance. Ideal for safely uncovering underground electric, gas, water, or telecommunication lines. In-line style handle designed for applications where gripping the tool in a vertical position is preferred.

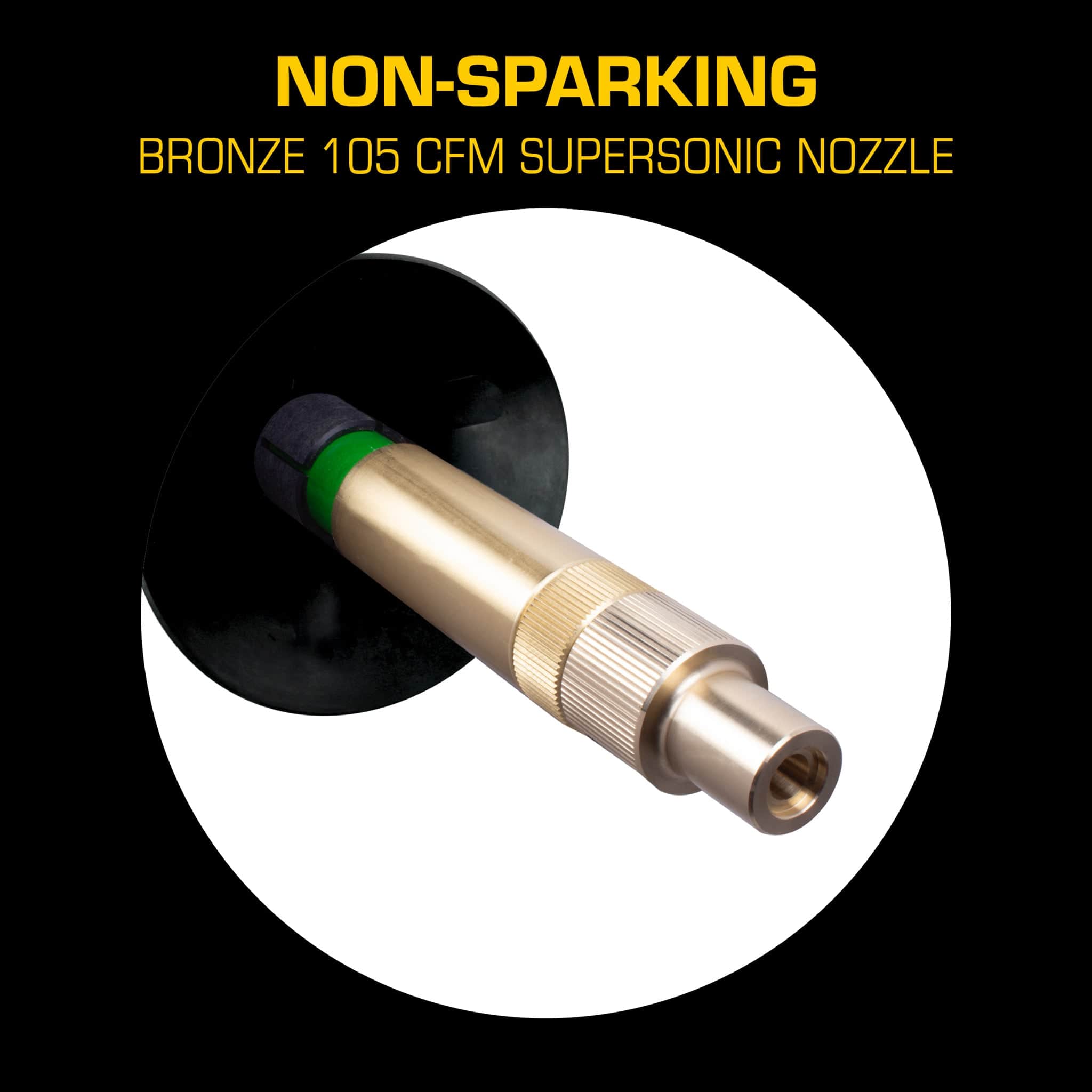

AirSpade 5000 Utility harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade Supersonic Nozzle. Fabricated from non-sparking bronze, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.
Rugged, lightweight aluminum handle features full-size grip opening to accommodate linesman's gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance. 3/4" NPT compressed air inlet equipped with 3/4" swivel type Universal Coupler.

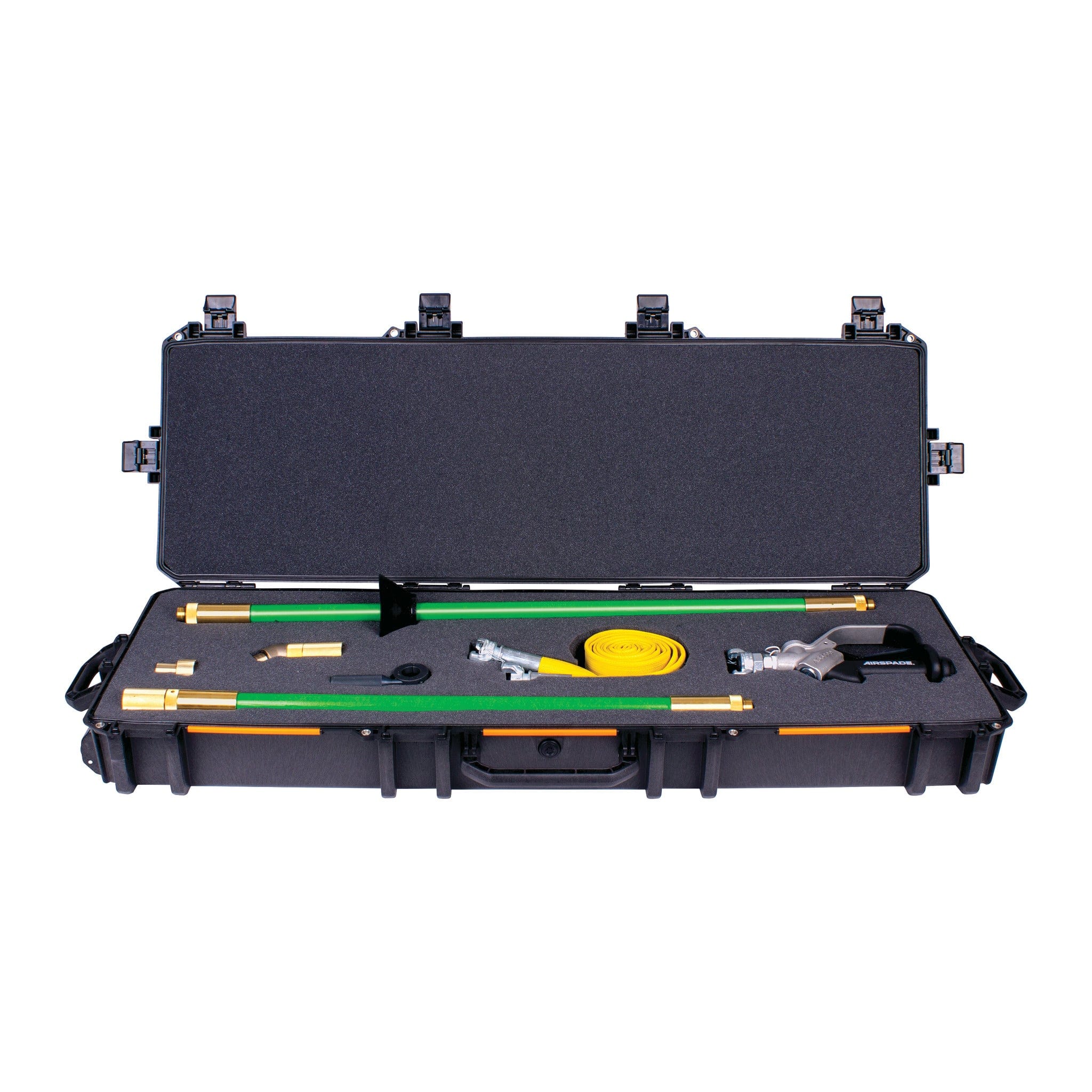

Screw-on, electrically insulated fiberglass barrel rated to 300kV protects operators from buried, high-voltage utility lines. Brass barrel sleeves and connectors minimize sparking potential. Adjustable, rubber dirt shield deflects soil and debris. Kit also includes 225kV rated, insulated 3 Ft fiberglass extension with brass coupler, 45-degree non-sparking brass angled adaptor, 1" x 10' lightweight air hose, and heavy-duty, locking storage case. Detachable, auxiliary handle included.

For AS 5000 replacement handle, click here.

View full details

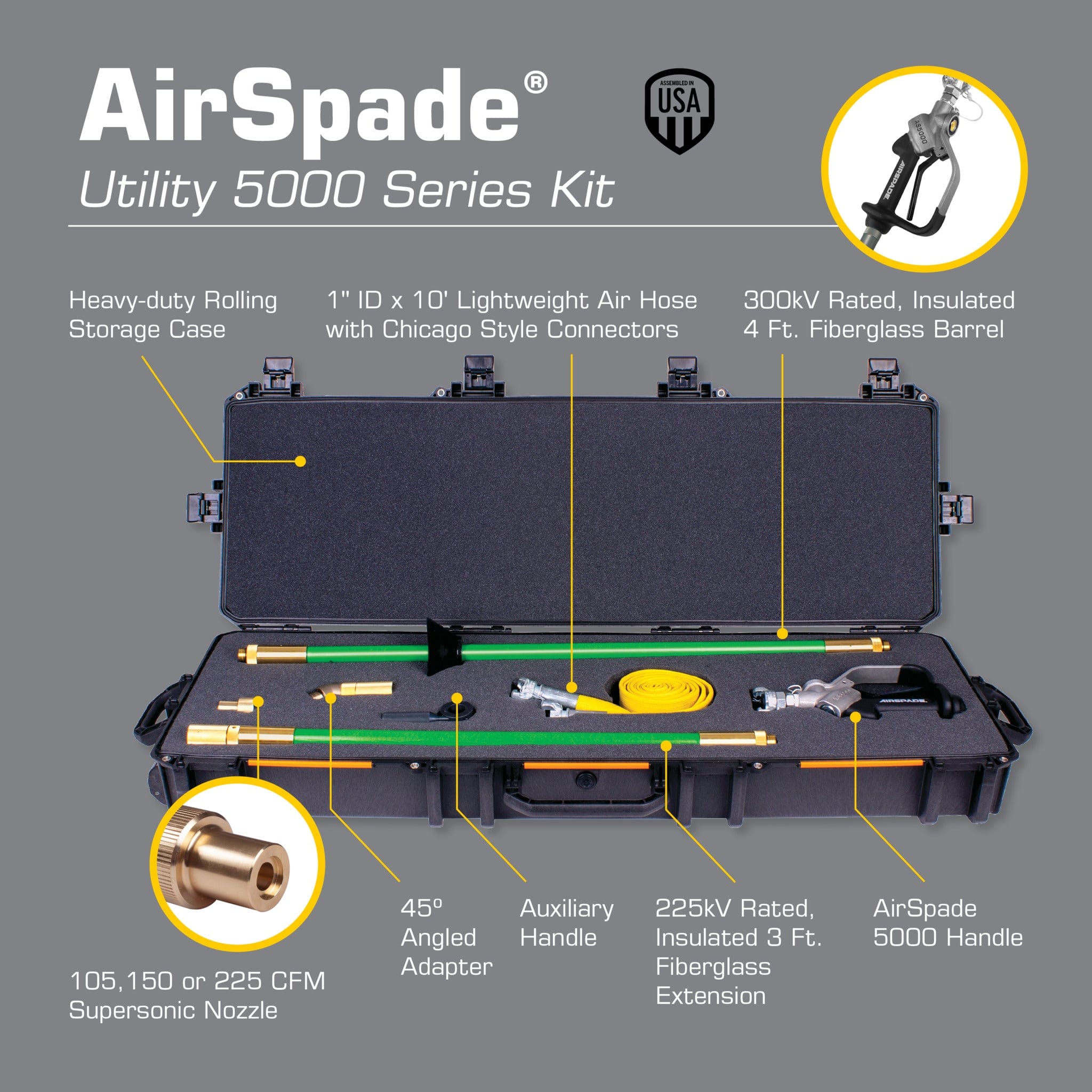

Features
  • 225kV rated, insulated 3 Ft. fiberglass extension with brass coupler
  • 300kV rated, insulated 4 Ft. fiberglass barrel with adjustable, rubber dirt shield
  • AS 5000 Handle with swivel-type Universal Coupler
  • 105 cfm non-sparking, bronze Supersonic Nozzle
  • Detachable, auxiliary handle
  • 45-degree non-sparking brass angled adaptor
  • 1'' ID x 10' lightweight air hose with Universal Couplers
  • Heavy-duty, locking storage case
  • (1) AS 5000 Handle with swivel-type Universal Coupler
  • (1) 300kV rated, insulated 4 Ft. fiberglass barrel with dirt shield
  • (1) 225kV rated, insulated 3 Ft. fiberglass extension with brass coupler
  • (1) 105 cfm non-sparking, bronze Supersonic Nozzle
  • (1) Detachable, auxiliary handle
  • (1) 45-degree non-sparking brass angled adaptor
  • (1) 1'' ID x 10' Lightweight air hose with Universal Couplers
  • (1) Heavy-duty, locking storage case
  • (1) Operations Manual
Specifications
Part Number Inlet Min. Compressor Required (hp) Soil Excavation Rate (cubic ft/min) Noise Level (dB) Flow (cfm) Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASU50105KT Inlet 3/4" Min. Compressor Required (hp) 23 Soil Excavation Rate (cubic ft/min) 0.9-1.5 Noise Level (dB) 120 Flow (cfm) 105 Dimensions
(L" x W" x H")
57.3 X 20 X 7.7
Weight (lbs) 42
Lead Time
Lead Time: 7 Days
