AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel

Part Number:

AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
ASU54225
AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
ASU54225
AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
ASU54225
AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
AirSpade 5000 Utility Series - 225 cfm with 4 Ft Barrel (ASU54225)
Regular price $1,908.70
Regular price Sale price $1,908.70
Sale Sold out

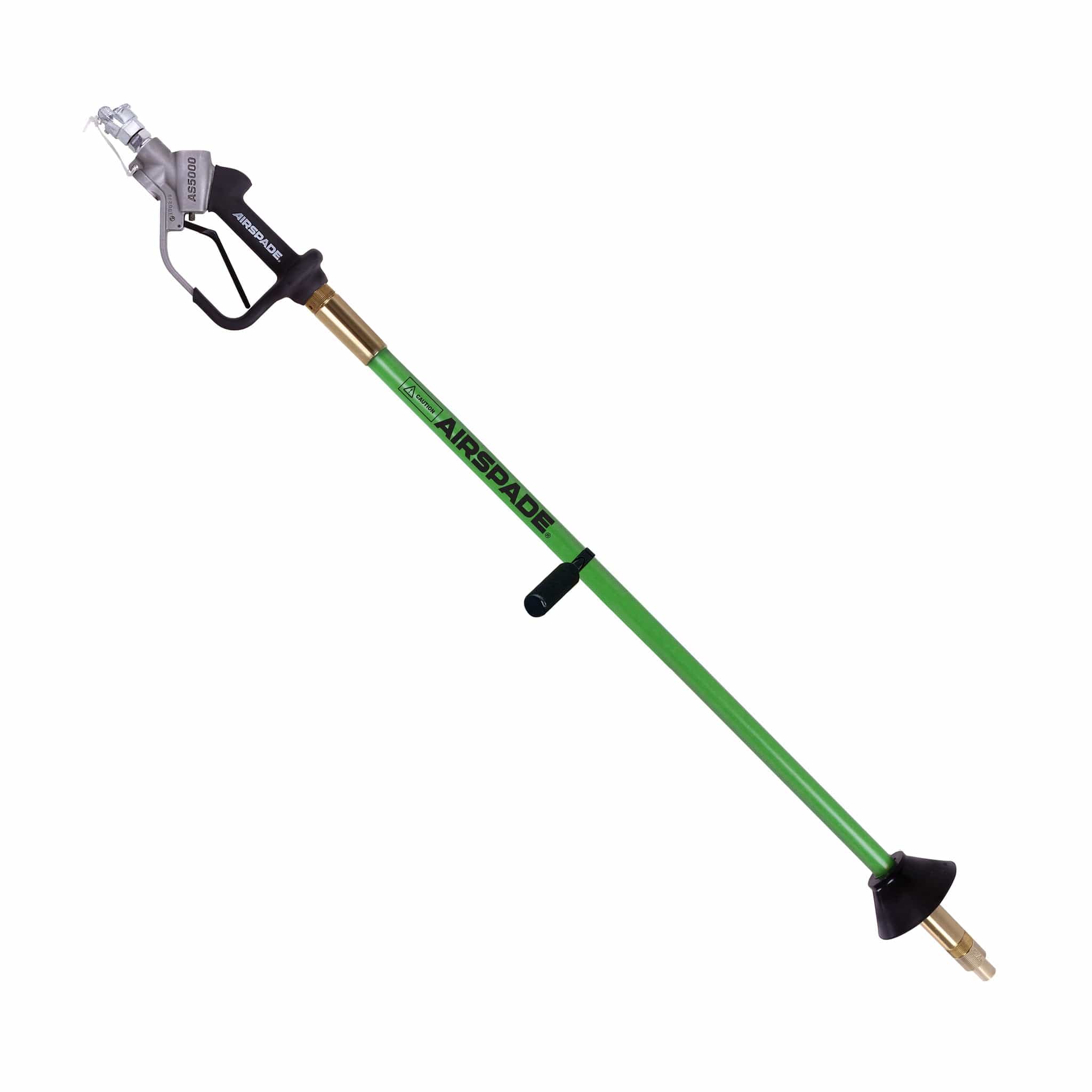

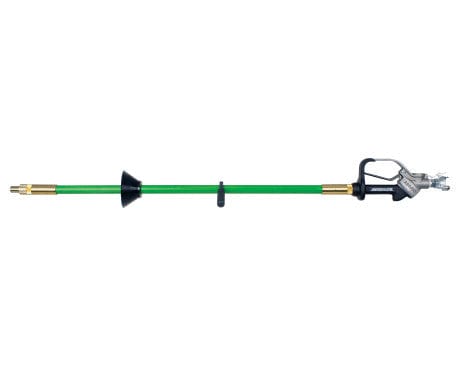

Safely uncover underground utilities with the AirSpade 5000 Utility Series -- the latest innovation in the AirSpade product line. Featuring an in-line style handle, AirSpade 5000 Utility is designed for air excavation applications where gripping the tool in a vertical position is preferred.

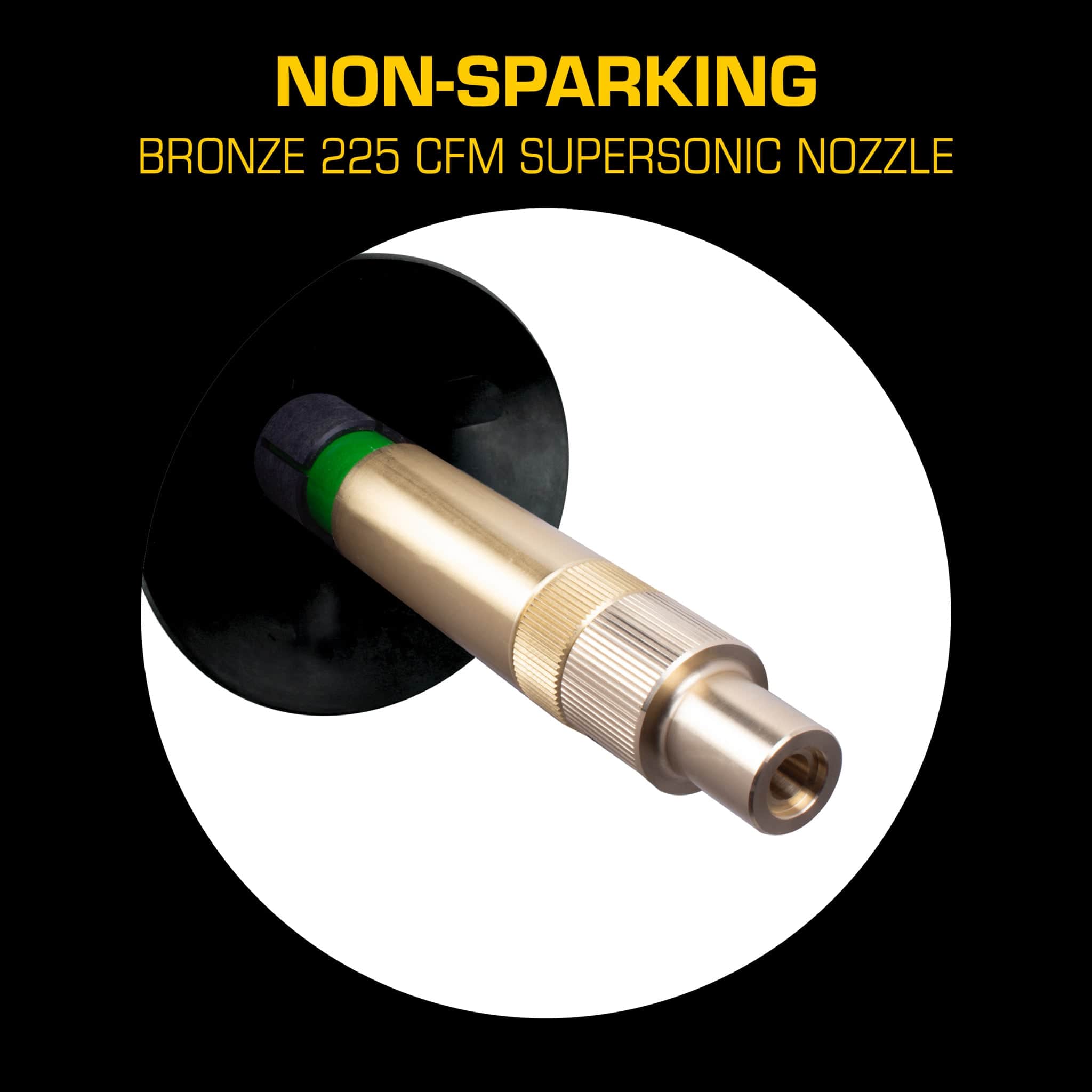

AirSpade 5000 Utility harnesses the power of compressed air by incorporating the high-performance, proprietary AirSpade Supersonic Nozzle. Fabricated from non-sparking bronze, the nozzle generates a laser-like air jet that moves at twice the speed of sound for faster, more effective digging.
Rugged, lightweight aluminum handle features full-size grip opening to accommodate linesman's gloves. Comfortable plastic grip provides thermal protection and a degree of electrical insulation. Dead-man trigger ensures safe operation and trigger guard prevents accidental activation. Integral pressure gauge ensures optimal digging performance. 3/4" NPT compressed air inlet equipped with 3/4" swivel-type Universal Coupler.
Screw-on, electrically insulated fiberglass barrel rated to 300kV protects operators from buried, high-voltage utility lines. Brass barrel sleeves and connectors minimize sparking potential. Adjustable, rubber dirt shield deflects soil and debris. Detachable, auxiliary handle included.

For AS 5000 replacement handle, click here.

View full details
Features
  • AS 5000 Handle with 3/4'' NPT inlet
  • Swivel-type Universal Coupler
  • 300kV rated, insulated 4 Ft. fiberglass barrel
  • Adjustable, rubber dirt shield
  • Non-sparking, bronze Supersonic Nozzle
  • Detachable, auxiliary handle
  • (1) AS 5000 Handle with swivel-type Universal Coupler
  • (1) 300kV rated, insulated 4 Ft. fiberglass barrel with dirt shield
  • (1) 225 cfm non-sparking, bronze Supersonic Nozzle
  • (1) Detachable, auxiliary handle
  • (1) Operations Manual
Specifications
Part Number Inlet Min. Compressor Required (hp) Soil Excavation Rate (cubic ft/min) Noise Level (dB) Flow (cfm) Dimensions
(L" x W" x H")
Weight (lbs)
Part Number ASU54225 Inlet 3/4" Min. Compressor Required (hp) 50 Soil Excavation Rate (cubic ft/min) 1.7-2.3 Noise Level (dB) 124 Flow (cfm) 225 Dimensions
(L" x W" x H")
63.5 X 11 X 3.2
Weight (lbs) 9
Lead Time
Lead Time: 7 Days
